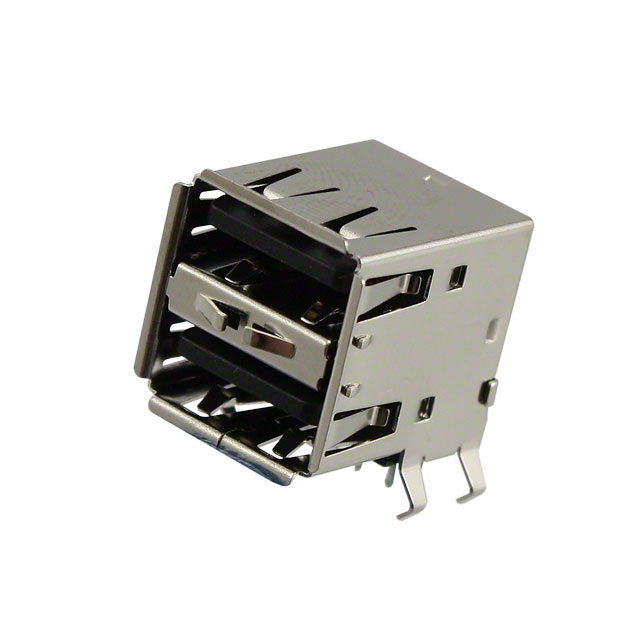

USB-A2HSB6
ActiveOn Shore Technology Inc.
CONN RCPT TYPEA STACKED 8POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
USB-A2HSB6
ActiveOn Shore Technology Inc.
CONN RCPT TYPEA STACKED 8POS R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-A2HSB6 |
|---|---|
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 8 |
| Number of Ports | 2 |
| Shell/Shielding Material | Brass |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.56 | |
| 10 | $ 1.19 | |||
| 25 | $ 1.07 | |||
| 40 | $ 1.01 | |||
| 80 | $ 0.94 | |||
| 230 | $ 0.83 | |||
| 440 | $ 0.78 | |||
| 945 | $ 0.72 | |||
| 2400 | $ 0.65 | |||
Description
General part information
USB-A2H Series
USB-A (USB TYPE-A), Stacked Receptacle Connector 8 Position Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
