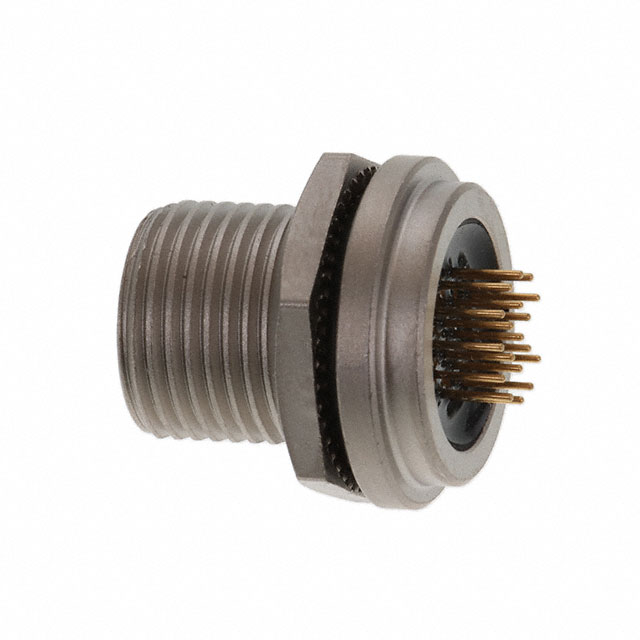

SF7984-18PG-3ES

Active

Conxall/Switchcraft

CONN RCPT MALE 18POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 18POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Number of Positions	Shielding	Orientation	Ingress Protection	Mounting Feature	Insert Material	Contact Finish - Mating	Primary Material	Color	Termination	Shell Finish	Shell Material	Applications
Conxall/Switchcraft SF7984-18PG-3ES	Copper Alloy	-40 °C	120 °C	Male Pins Receptacle	Panel Mount Through Hole	18	Shielded	Keyed	IP66/IP68	Bulkhead - Front Side Nut	Polyester Resin	Gold	Metal	Silver	Solder	Nickel	Copper Alloy
Conxall/Switchcraft SF7984-18SG-3ES	Copper Alloy	-40 °C	120 °C	Receptacle Female Sockets	Panel Mount Through Hole	18	Shielded	Keyed	IP66/IP68	Bulkhead - Front Side Nut	Polyester Resin	Gold	Metal	Silver	Solder	Nickel	Copper Alloy
Conxall/Switchcraft SF7984-12SG-3ES	Copper Alloy	-40 °C	120 °C	Receptacle Female Sockets	Panel Mount Through Hole	12	Shielded	Keyed	IP66/IP68	Bulkhead - Front Side Nut	Polyester Resin	Gold	Metal	Silver	Solder	Nickel	Copper Alloy	Lighting Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available
