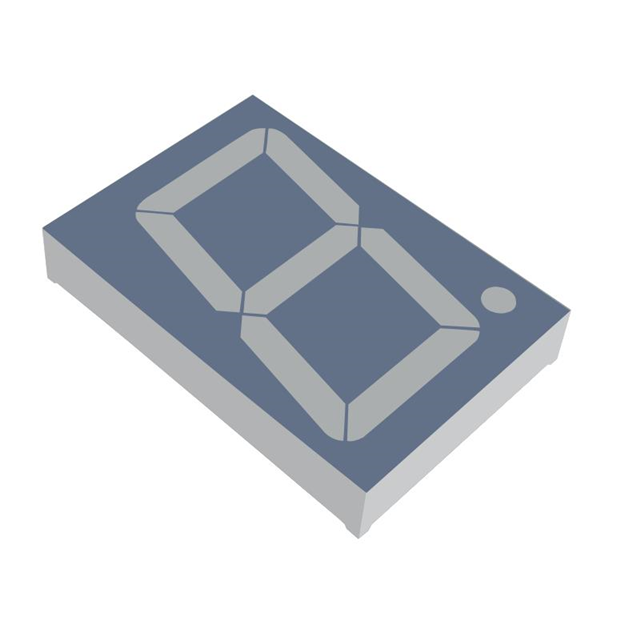

XDUY57A

Active

SunLED

2.3" YELLOW LED DISPLAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUY57A

Active

SunLED

2.3" YELLOW LED DISPLAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDUY57A

Color	Yellow
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size [custom]	56.9 mm
Digit/Alpha Size [custom]	2.24 in
Display Type	7-Segment
Millicandela Rating	39.99 mcd
Number of Characters [custom]	1
Package / Case	2.367 in
Package / Case	60.1 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	300 mW
Size / Dimension	48 mm, 70 mm, 12.25 mm
Size / Dimension [x]	2.756 in
Size / Dimension [y]	1.89 in
Size / Dimension [z]	0.482 "
Voltage - Forward (Vf) (Typ)	7.8 V
Wavelength - Peak	590 nm

XDUY57 Series

Part	Current - Test	Number of Characters [custom]	Digit/Alpha Size [custom]	Digit/Alpha Size [custom]	Common Pin	Millicandela Rating	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Display Type	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Color
SunLED XDUY57A	10 mA	1	56.9 mm	2.24 in	Common Anode	39.99 mcd	300 mW	2.367 in	60.1 mm	10-DIP	1.89 in	2.756 in	0.482 "	12.25 mm 48 mm 70 mm	7-Segment	590 nm	7.8 V	Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XDUY57 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 7.8V 10mA 2.756" H x 1.890" W x 0.482" D (70.00mm x 48.00mm x 12.25mm) 10-DIP (2.367", 60.10mm)
