BPJF03X
ActiveSwitchcraft Inc.

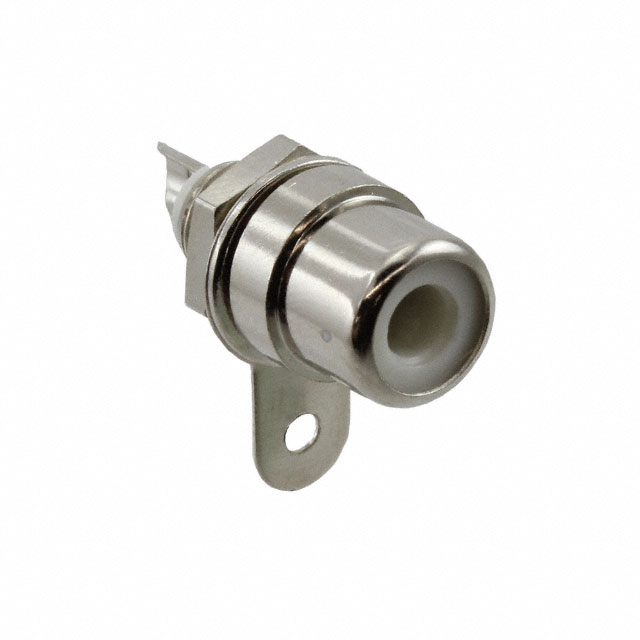

CONN RCA JACK MONO 3.2MM PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPJF03X
ActiveSwitchcraft Inc.
CONN RCA JACK MONO 3.2MM PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPJF03X |
|---|---|
| Actual Diameter [custom] | 8.25 mm |
| Actual Diameter [custom] | 0.134 " |
| Actual Diameter [custom] | 3.4 mm |
| Actual Diameter [custom] | 0.325 " |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Features | Mounting Hardware, Grounding Tab |
| Gender | Female |
| Includes | Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm |
| Insulation Color | White |
| Internal Switch(s) | False |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Panel Hole Size | 10.2 mm |
| Panel Hole Size | 0.402 in |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Thread Size | 1/4"-32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.85 | |
| 10 | $ 1.68 | |||
| 25 | $ 1.59 | |||
| 50 | $ 1.55 | |||
| 100 | $ 1.48 | |||
| 300 | $ 1.30 | |||
Description
General part information
BPJF03 Series
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
