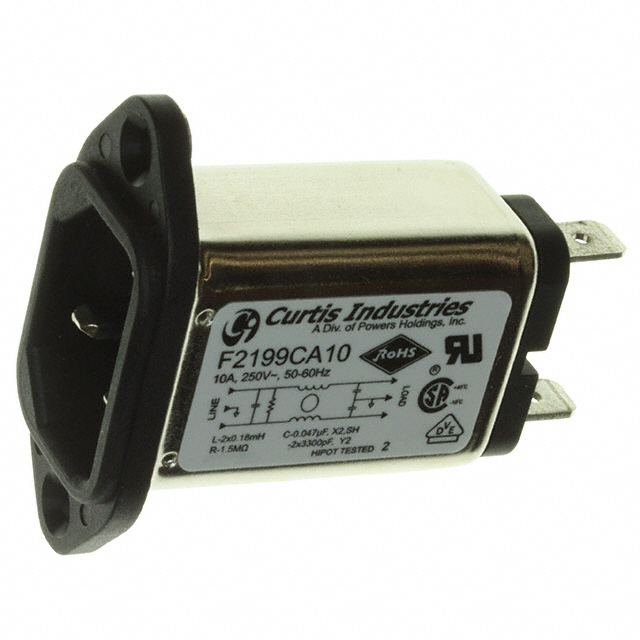

F2199CA10

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	F2199CA10

Accomodates a Fuse	False
Approval Agency	CSA, CE, UL, TUV
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Mounting Type	Approval Agency	Termination	Termination	Termination	Panel Cutout Dimensions	Connector Style	Current Rating - Filter	Current Rating - Appliance Inlet	Connector Type	Features	Voltage Rating - Appliance Inlet	Filter Type
Curtis Industries F2199CA10	Flange Panel Mount	CE CSA TUV UL	0.25 in	6.3 mm	Quick Connect	Variable Size	IEC 320-C14	10 A	10 A	Male Blades Receptacle	Front or Rear Side Mount	250 VAC	Filtered (EMI RFI) - Commercial
Curtis Industries F2199CA03	Flange Panel Mount	CE CSA TUV UL	0.25 in	6.3 mm	Quick Connect	Variable Size	IEC 320-C14	3 A	3 A	Male Blades Receptacle	Front or Rear Side Mount	250 VAC	Filtered (EMI RFI) - Commercial
Curtis Industries F2199CA01	Flange Panel Mount	CE CSA TUV UL	0.25 in	6.3 mm	Quick Connect	Variable Size	IEC 320-C14	1 A	1 A	Male Blades Receptacle	Front or Rear Side Mount	250 VAC	Filtered (EMI RFI) - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 16.14

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
