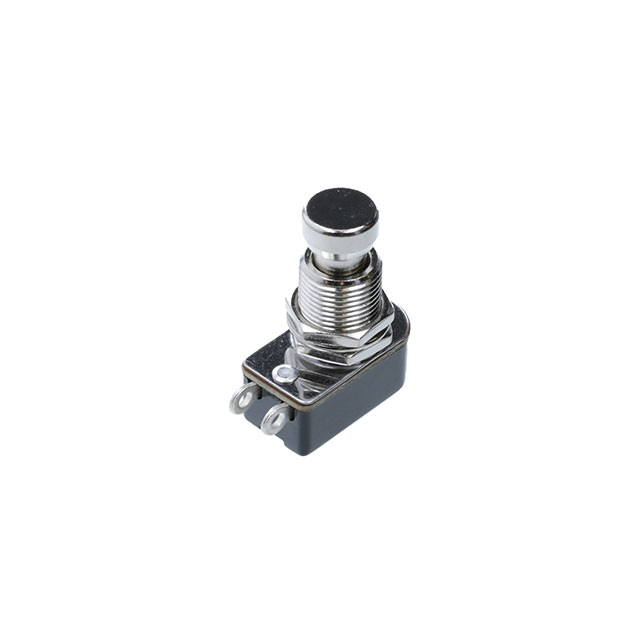

PA2-1B-DC-5
ActiveSwitch Components
COMPACT PUSH BUTTON-NO SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PA2-1B-DC-5
ActiveSwitch Components
COMPACT PUSH BUTTON-NO SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PA2-1B-DC-5 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger, Metal |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 10 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Rear |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard (Footswitch) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.29 | |
| 10 | $ 4.09 | |||
| 25 | $ 3.99 | |||
| 50 | $ 3.90 | |||
| 100 | $ 3.68 | |||
| 250 | $ 3.38 | |||
| 500 | $ 2.56 | |||
| 1000 | $ 2.35 | |||
Description
General part information
PA2-1B Series
Pushbutton Switch SPST-NO Standard (Footswitch) Panel Mount, Rear
