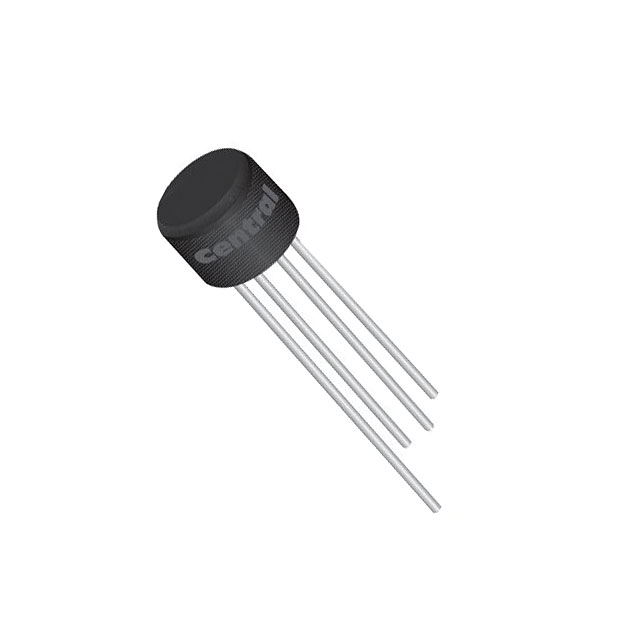

CBR1F-020

Obsolete

Central Semiconductor Corp

BRIDGE RECT 1P 200V 1.5A A CASE

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

BRIDGE RECT 1P 200V 1.5A A CASE

Technical Specifications

Parameters and characteristics for this part

Specification	CBR1F-020

Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	4-Circular, A Case
Supplier Device Package	A Case
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Package / Case	Diode Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Technology	Mounting Type
Central Semiconductor Corp CBR1F-020	4-Circular A Case	Single Phase	150 °C	-65 °C	A Case	1.3 V	10 µA	1.5 A	200 V	Standard	Through Hole
Central Semiconductor Corp CBR1F-040	4-Circular A Case	Single Phase	150 °C	-65 °C	A Case	1.3 V	10 µA	1.5 A	400 V	Standard	Through Hole
Central Semiconductor Corp CBR1F-100	4-Circular A Case	Single Phase	150 °C	-65 °C	A Case	1.3 V	10 çA	1.5 A	1000 V	Standard	Through Hole
Central Semiconductor Corp CBR1F-060	4-Circular A Case	Single Phase	150 °C	-65 °C	A Case	1.3 V	10 µA	1.5 A	600 V	Standard	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 200 V Through Hole A Case
