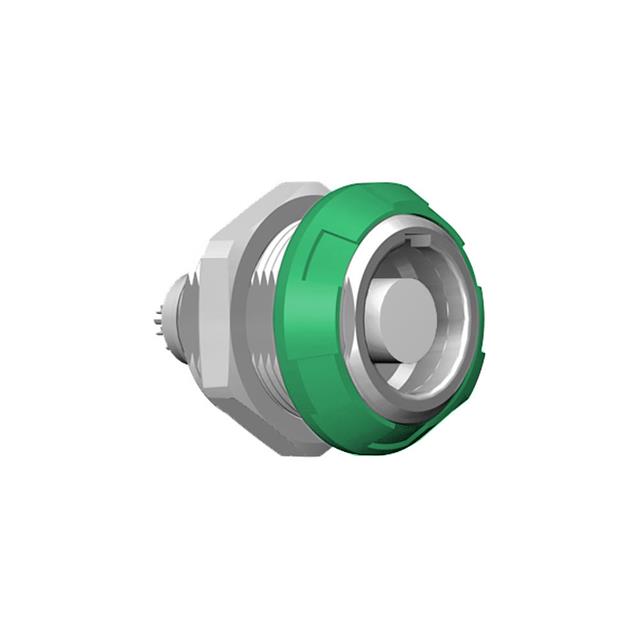

G51MC7-P09LCC0-0050

Active

ODU

CONN RCPT FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G51MC7-P09LCC0-0050

Active

ODU

CONN RCPT FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G51MC7-P09LCC0-0050

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Green, Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	2.75 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	9
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	C
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

G51MC7-P Series

...

Part	Number of Positions	Orientation	Shielding	Shell Material	Contact Material	Primary Material	Connector Type	Current Rating (Amps)	Ingress Protection	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Applications	Insert Material	Mounting Feature	Shell Size - Insert	Color
ODU G51MC7-P10LCC0-0080	10	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	2.75 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1
ODU G51MC7-P07LFD0-0050	7	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	4.55 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1	Gray Green
ODU G51MC7-P09LCC0-0060	9	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	2.75 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1	Blue Gray
ODU G51MC7-P07LFD0-0070	7	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	4.55 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1	Gray
ODU G51MC7-P04LJG0-0060	4	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	10 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1	Blue Gray
ODU G51MC7-P04LJG0-0020	4	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	10 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1	Gray Red
ODU G51MC7-P09LCC0-0050	9	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	2.75 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1	Gray Green
ODU G51MC7-P04LJG0-0080	4	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	10 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1
ODU G51MC7-P07LFD0-0040	7	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	4.55 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1	Gray Yellow
ODU G51MC7-P04LJG0-0050	4	C	Unshielded	Polysulfone (PSU)	Brass	Plastic	Receptacle Female Sockets	10 A	IP50	Gold	-50 °C	120 °C	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Bulkhead - Front or Rear Side Nut	1	Gray Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.62
		10	$ 24.18
		25	$ 23.14
		50	$ 22.39
		100	$ 21.65
		250	$ 20.45
		500	$ 19.85

Description

General part information

G51MC7-P Series

9 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources
