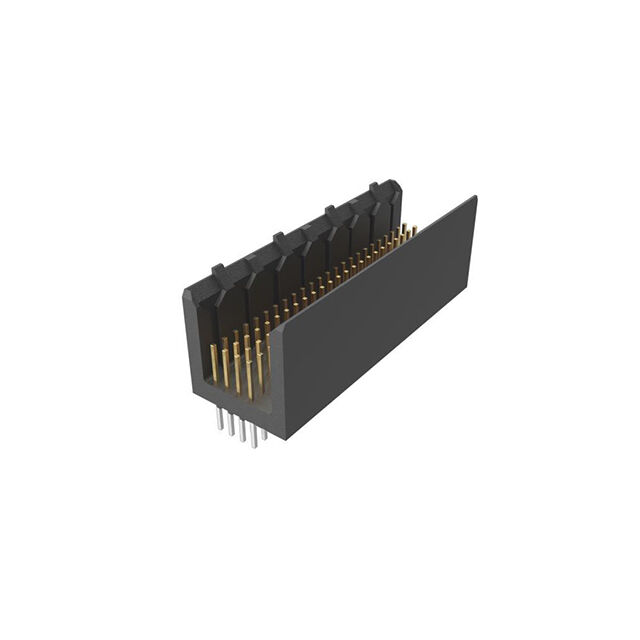

10058266-102LF

Active

Amphenol ICC (FCI)

PF MALE SIGNAL SEL LD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

PF MALE SIGNAL SEL LD

Technical Specifications

Parameters and characteristics for this part

Specification	10058266-102LF

Color	Natural
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	1.5 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit

Part	Mounting Type	Connector Type	Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Termination
Amphenol ICC (FCI) 10058266-102LF	Through Hole	Header Male Pins	Natural	All	-55 °C	125 °C	Gold	UL94 V-0	1.5 A	0.76 Ám	30 Áin	Press-Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	288	$ 11.14

General part information

Connector Header, Male Pins Through Hole Natural
