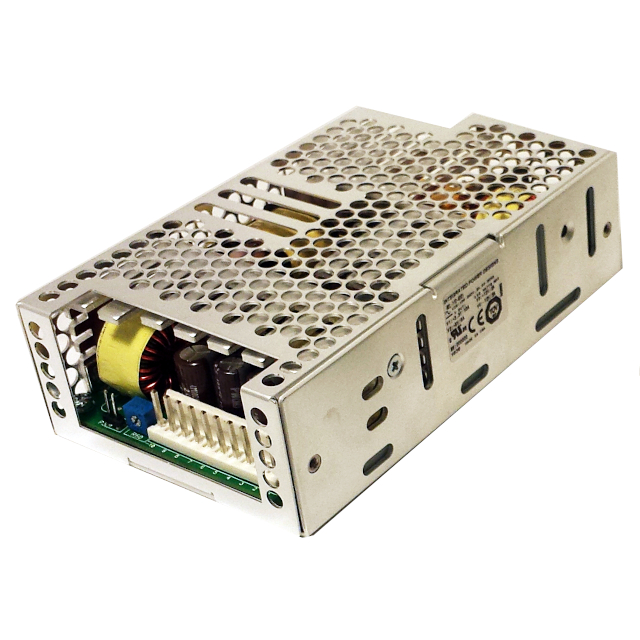

1010475CHCO

Active

Integrated Power Designs

AC-DC POWER MODULES ROHS

Search across all available documentation for this part.

Active

Integrated Power Designs

AC-DC POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	1010475CHCO

Applications	Industrial, Laboratory, Medical, ITE (Commercial)
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	10 A
Current - Output 2 [custom]	6 A
Current - Output 3	2 A
Current - Output 4	2 A
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	110 W
Size / Dimension [x]	133.4 mm
Size / Dimension [x]	5.25 "
Size / Dimension [y]	3.12 "
Size / Dimension [y]	79.2 mm
Size / Dimension [z]	1.48 "
Size / Dimension [z]	37.6 mm
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Output 1	5 V
Voltage - Output 2	-5 V
Voltage - Output 3	15 V
Voltage - Output 4	-15 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Number of Outputs	Power (Watts)	Features	Current - Output 1	Approval Agency	Standard Number	Voltage - Output 3	Current - Output 4	Applications	Mounting Type	Current - Output 3	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 2	Current - Output 2 [custom]	Type	Voltage - Output 4
Integrated Power Designs 1010475CHCO	70 °C	0 °C	5 V	4	110 W	Adjustable Output Universal Input	10 A	CE cURus TUV UKCA	60601-1 62368-1	15 V	2 A	Industrial ITE (Commercial) Laboratory Medical	Chassis Mount	2 A	3.12 "	133.4 mm	79.2 mm	1.48 "	37.6 mm	5.25 "	-5 V	6 A	Enclosed	-15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 5V -5V 15V -15V 85 ~ 264 VAC Input
