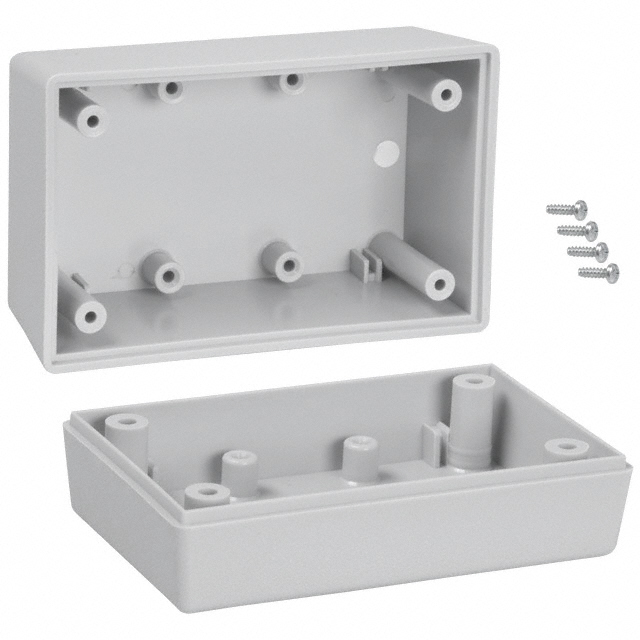

112,GY

Active

Serpac

BOX ABS GRAY 3.6"L X 2.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 3.6"L X 2.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	112,GY

Area (L x W)	52.3 cm²
Area (L x W)	8.1 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.156 lb
Weight	70.76 g

Part	Area (L x W)	Area (L x W)	Color	Weight	Weight	Design	Features	Container Type	Material Flammability Rating	Height [z]	Height [z]	Thickness	Thickness	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material
Serpac 112,GY	52.3 cm²	8.1 in²	Gray	0.156 lb	70.76 g	Hand Held Split Sides	PCB Supports	Box	UL94 HB	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS
Serpac 112,AL	52.3 cm²	8.1 in²	Almond	0.156 lb	70.76 g	Hand Held Split Sides	PCB Supports	Box	UL94 HB	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 3.600" L x 2.250" W (91.44mm x 57.15mm) X 2.000" (50.80mm)

Technical documentation and resources

No documents available
