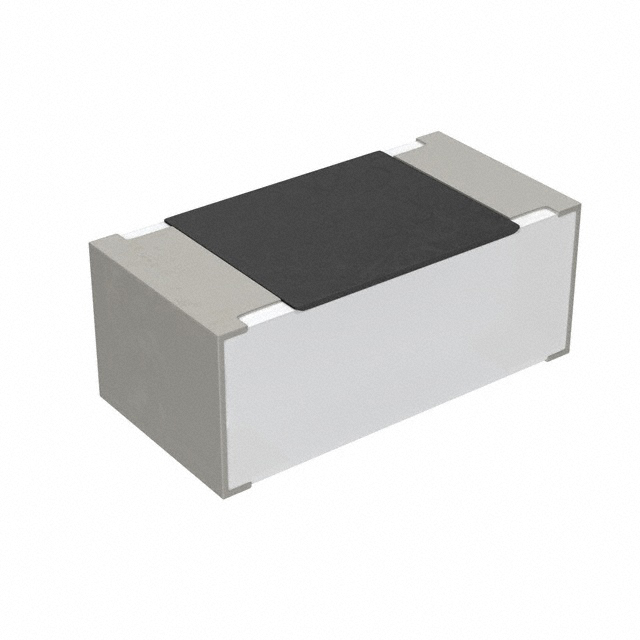

ZVX25S0603300NIR1
ActiveBourns Inc.
VARISTOR X 25 S 0603 300 NI R1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZVX25S0603300NIR1 |
|---|---|
| Capacitance @ Frequency | 100 pF |
| Current - Surge | 30 A |
| Energy | 0.1 J |
| Maximum AC Volts [Max] | 25 V |
| Maximum DC Volts [Max] | 30 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Varistor Voltage (Max) [Max] | 46.9 V |
| Varistor Voltage (Min) [Min] | 37 V |
| Varistor Voltage (Typ) | 41.95 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 21000 | $ 0.05 | |
Description
General part information
ZVX25S Series
41.95 V 30 A Varistor 1 Circuit Surface Mount, MLCV 0603 (1608 Metric)
