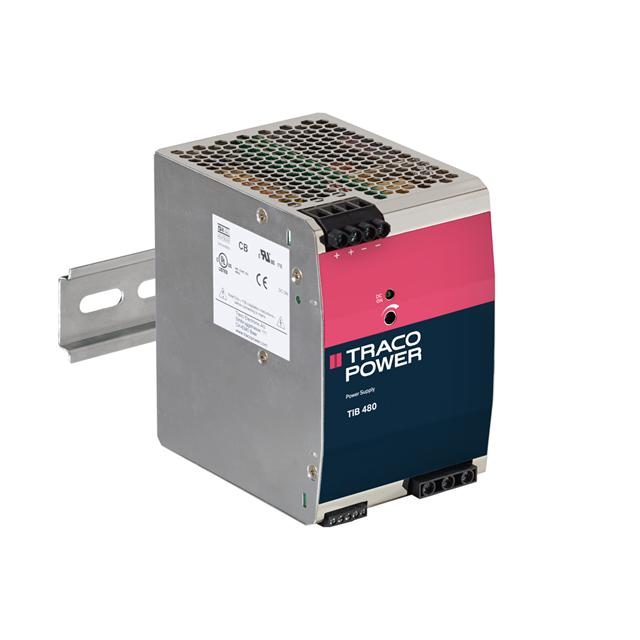

TIB 480-124

Active

Traco Power

AC/DC DIN RAIL SUPPLY 24V 480W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 24V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	TIB 480-124

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CB, CE, SIQ, cURus, cULus
Current - Output (Max) [Max]	20 A
Efficiency	94.7 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Power (Watts)	480 W
Size / Dimension [x]	4.5 in
Size / Dimension [x]	114.2 mm
Size / Dimension [y]	3.23 "
Size / Dimension [y]	82 mm
Size / Dimension [z]	4.89 "
Size / Dimension [z]	124.2 mm
Voltage - Isolation	4.25 kV
Voltage - Output 1	24 V

Part	Power (Watts)	Voltage - Isolation	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	Approval Agency	Number of Outputs	Input Type	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Applications
Traco Power TIB 480-124	480 W	4.25 kV	20 A	85 VAC	264 VAC	24 V	CB CE cULus cURus SIQ	1	AC	Adjustable Output PFC Universal Input	4.5 in	3.23 "	4.89 "	124.2 mm	114.2 mm	82 mm	94.7 %	Industrial ITE (Commercial)
Traco Power TIB 480-148	480 W	4.25 kV	10 A	85 VAC	264 VAC	48 V	CB CE cULus cURus SIQ	1	AC	Adjustable Output PFC Remote On/Off Universal Input	4.5 in	3.23 "	4.89 "	124.2 mm	114.2 mm	82 mm	95 %	Industrial ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 480W

Technical documentation and resources
