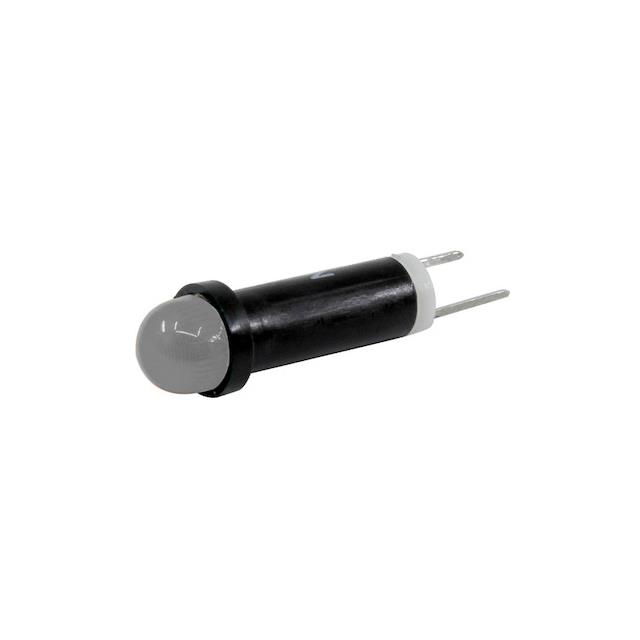

C46-RAG24H-CWO
ActiveVisual Communications Company - VCC
PMI .250" LED 24V TAB CLEAR RED/
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C46-RAG24H-CWO
ActiveVisual Communications Company - VCC
PMI .250" LED 24V TAB CLEAR RED/
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C46-RAG24H-CWO |
|---|---|
| Current | 17 mA |
| Lamp Color | Green, Amber, Red |
| Lens Color | Colorless |
| Lens Size [diameter] | 7.1 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Panel Cutout Dimensions | 6.35 mm |
| Panel Cutout Dimensions | 0.25 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | PC Pin |
| Type | LED |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.99 | |
Description
General part information
C46-RAG24H Series
LED Panel Indicator Red/Amber/Green Clear 24V 17mA PC Pin
Documents
Technical documentation and resources
