E1042S.30.10

Active

Prysmian Group

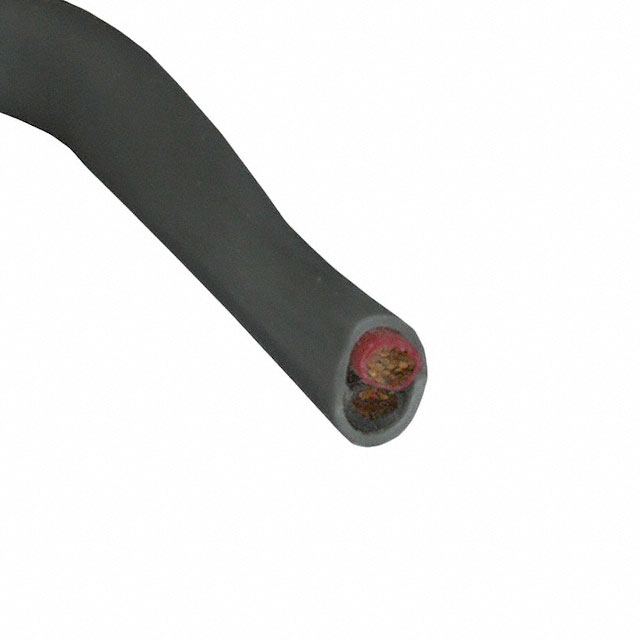

CABLE 2COND 16AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 16AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	E1042S.30.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.178 in
Jacket (Insulation) Diameter [diameter]	4.52 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Ratings	ASTM B-3
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Material	Wire Gauge	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Length	Length	Features	Cable Type	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Usage
Prysmian Group E1042S.30.10	Copper Annealed Bare	16 AWG	Gray	0.015 in	0.381 mm	2	1000 ft	304.8 m	Rip Cord	Multi-Conductor	ASTM B-3	0.178 in	4.52 mm	Poly-Vinyl Chloride (PVC) Riser	19	0.0117 in	Poly-Vinyl Chloride (PVC)	300 V	Alarm Security Sound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 16 AWG 1000.0' (304.8m)
