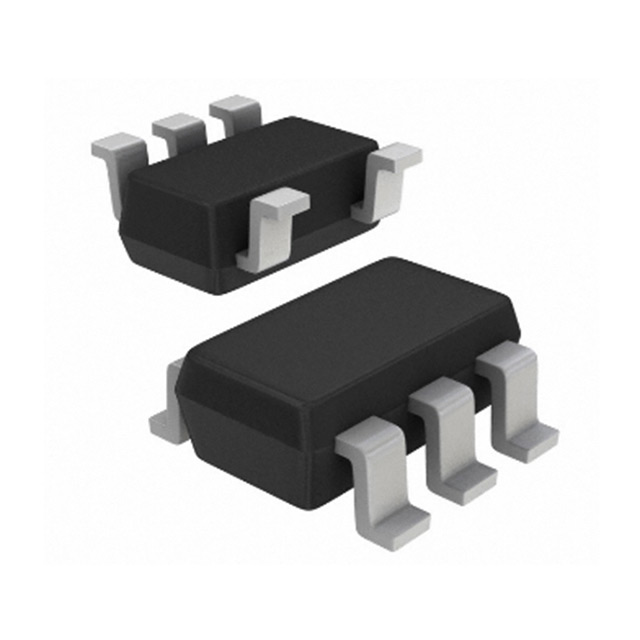

SI7217-B-01-IVR
ActiveSilicon Labs
SENSOR HALL EFFECT ANALOG SOT23
Deep-Dive with AI
Search across all available documentation for this part.
SI7217-B-01-IVR
ActiveSilicon Labs
SENSOR HALL EFFECT ANALOG SOT23
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SI7217-B-01-IVR |
|---|---|
| Axis | Single |
| Bandwidth | 7 kHz |
| Current - Supply (Max) [Max] | 5.5 mA |
| Features | BIST |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | SC-74A, SOT-753 |
| Sensing Range [Max] | 20 mT |
| Sensing Range [Min] | -20 mT |
| Supplier Device Package | SOT-23-5 |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.85 | |
Description
General part information
SI7217 Series
Hall Effect Sensor Single Axis SOT-23-5
