W8A82-8PG-528

Active

Conxall/Switchcraft

CONN RCPT MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W8A82-8PG-528

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	6.6 mm
Cable Opening [diameter]	7.24 mm
Cable Opening [diameter]	0.285 in, 0.26 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant, Backshell
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	8
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Primary Material	Ingress Protection	Contact Finish - Mating	Color	Features	Connector Type	Contact Material	Current Rating (Amps)	Orientation	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Applications	Fastening Type	Mounting Type	Insert Material	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft W8A82-8PG-528	Unshielded	85 °C	-40 °C	250 VDC	Plastic	IP67 IP69K	Gold	Black	Backshell UV Resistant	Male Pins Plug	Copper Alloy	Varies by Wire Gauge	Keyed	8	6	2	Automotive Communication Systems Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Thermoplastic	Thermoplastic	6.6 mm	7.24 mm	0.26 in 0.285 in
Conxall/Switchcraft W8A82-8SG-528	Unshielded	85 °C	-40 °C	250 VDC	Plastic	IP67 IP69K	Gold	Black	Backshell UV Resistant	Female Sockets Plug	Copper Alloy	Varies by Wire Gauge	Keyed	8	6	2	Automotive Communication Systems Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Thermoplastic	Thermoplastic	6.6 mm	7.24 mm	0.26 in 0.285 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

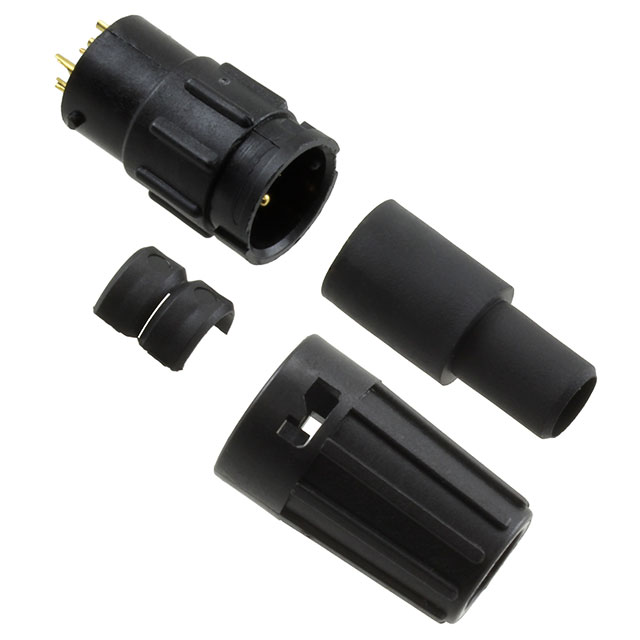

8 (6 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup
