ASJ-182-1A-HDW-WP - ASJ-182-1A-HDW-WP

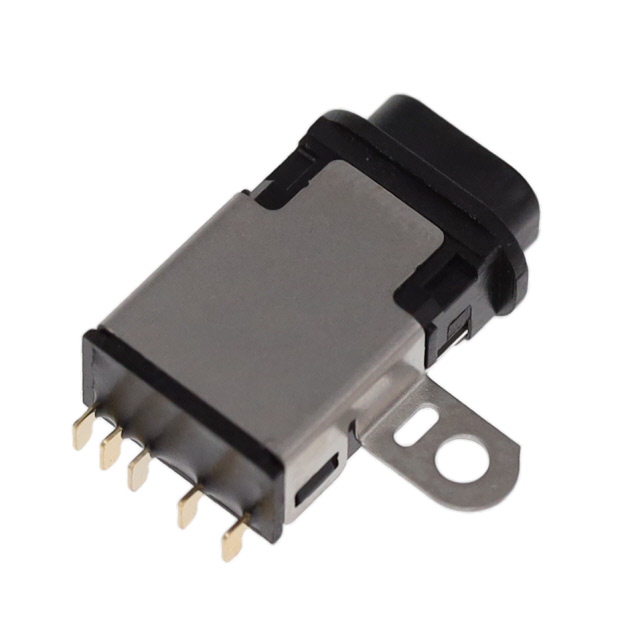

ASJ-182-1A-HDW-WP

Obsolete
Adam Tech

AUDIO JACK, WATERPROOF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1
ASJ-182-1A-HDW-WP - ASJ-182-1A-HDW-WP

ASJ-182-1A-HDW-WP

Obsolete
Adam Tech

AUDIO JACK, WATERPROOF

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1

Technical Specifications

Parameters and characteristics for this part

SpecificationASJ-182-1A-HDW-WP
Actual Diameter [diameter]0.142 in
Actual Diameter [diameter]3.6 mm
Body ColorBlack
Connector TypePhone Jack
Contact MaterialCopper Alloy
Contact Material - Plating [custom]Gold
Current Rating (Amps)1 A
FeaturesIP67
GenderFemale
Housing MaterialThermoplastic
Industry Recognized Mating Diameter0.141 "
Industry Recognized Mating Diameter0.125 "
Industry Recognized Mating Diameter3.5 mm
Insulation ColorBlack
Internal Switch(s)False
Mating Length/Depth0.551 in
Mating Length/Depth14 mm
Mounting TypeThrough Hole, Right Angle
Number of Positions/Contacts [custom]5
Number of Positions/Contacts [custom]4
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
ShieldingShielded
Signal LinesStereo
TerminationSolder
Voltage - Rated12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

ASJ-182 Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
