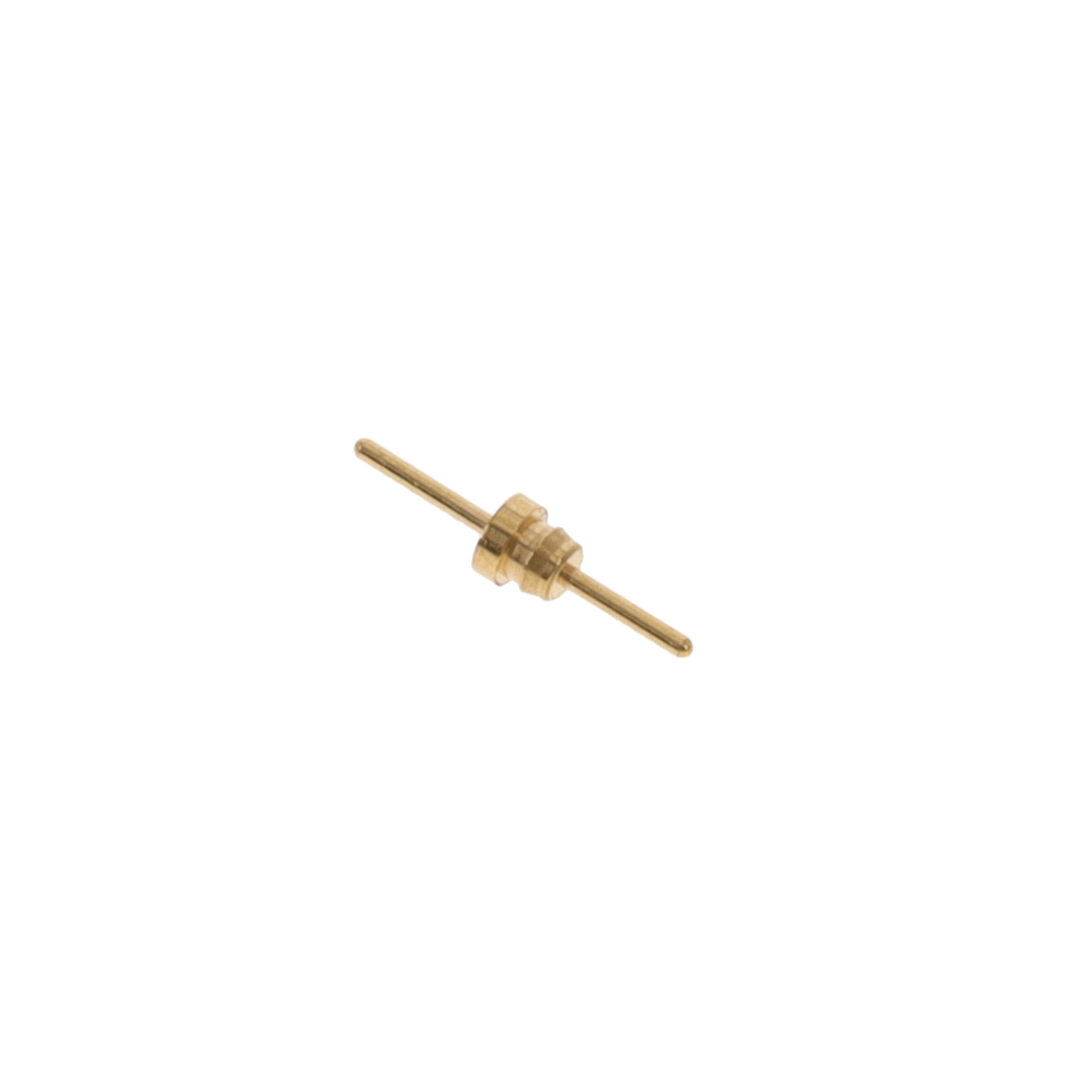

4516 DOUBLE TAIL HEADER PIN
Deep-Dive with AI
Search across all available documentation for this part.
4516-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
4516 DOUBLE TAIL HEADER PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4516-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.162 in |
| Length - Above Flange [x] | 4.12 mm |
| Length - Below Flange [x] | 3.43 mm |
| Length - Below Flange [x] | 0.135 in |
| Length - Overall [x] | 0.319 in |
| Length - Overall [x] | 8.1 mm |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Pin Size - Below Flange [diameter] | 0.46 mm |
| Pin Size - Below Flange [diameter] | 0.018 " |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.27 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| 5000 | $ 0.11 | |||
| 10000 | $ 0.10 | |||
Description
General part information
4516-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
