RP101K301D-TR

Active

Nisshinbo Micro Devices Inc

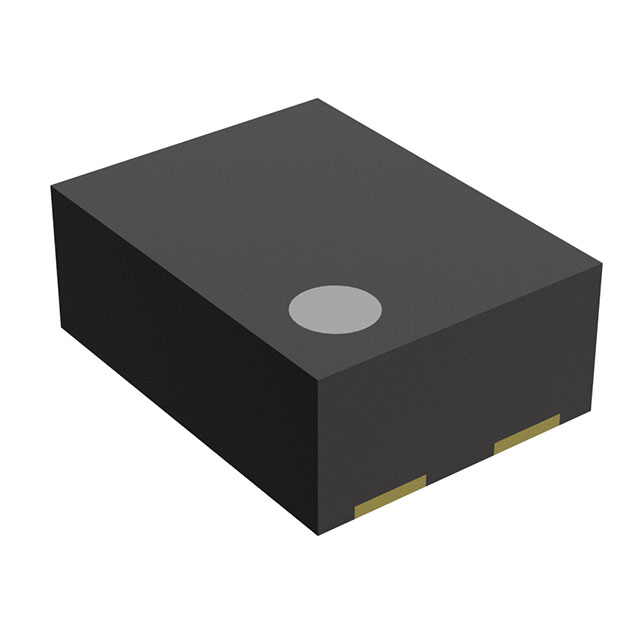

IC REG LINEAR 3V 300MA DFN1612-4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP101K301D-TR

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 3V 300MA DFN1612-4

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP101K301D-TR

Control Features	Enable
Current - Output	300 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	4-UDFN Exposed Pad
Protection Features	Over Current
Supplier Device Package	DFN(PL)1612-4
Voltage - Input (Max) [Max]	5.25 V
Voltage Dropout (Max) [Max]	0.23 V

RP101 Series

Part	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	PSRR	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Package / Case	Protection Features	Voltage Dropout (Max) [Max]	Output Type	Current - Output	Supplier Device Package	Mounting Type	Number of Regulators	Control Features	Voltage - Output (Min/Fixed) [Min]
Nisshinbo Micro Devices Inc RP101N331D-TR-FE	Positive	85 °C	-40 °C	75 dB	5.25 V	3.3 V	SC-74A SOT-753	Over Current	0.23 V	1.81 mOhm	300 mA	SOT-23-5	Surface Mount	1	Enable
Nisshinbo Micro Devices Inc RP101K301D-TR	Positive	85 °C	-40 °C		5.25 V		4-UDFN Exposed Pad	Over Current	0.23 V	1.81 mOhm	300 mA	DFN(PL)1612-4	Surface Mount	1	Enable
Nisshinbo Micro Devices Inc RP101N301B-TR-FE	Positive	85 °C	-40 °C		5.25 V		SC-74A SOT-753	Over Current	0.23 V	1.81 mOhm	300 mA	SOT-23-5	Surface Mount	1	Enable
Nisshinbo Micro Devices Inc RP101K231D-TR	Positive	85 °C	-40 °C		5.25 V		4-UDFN Exposed Pad	Over Current	0.3 V	1.81 mOhm	300 mA	DFN(PL)1612-4	Surface Mount	1	Enable	2.3 V
Nisshinbo Micro Devices Inc RP101N311D-TR-FE	Positive	85 °C	-40 °C		5.25 V	3.1 V	SC-74A SOT-753	Over Current	0.23 V	1.81 mOhm	300 mA	SOT-23-5	Surface Mount	1	Enable
Nisshinbo Micro Devices Inc RP101N271D-TR-FE	Positive	85 °C	-40 °C		5.25 V	2.7 V	SC-74A SOT-753	Over Current	0.25 V	1.81 mOhm	300 mA	SOT-23-5	Surface Mount	1	Enable
Nisshinbo Micro Devices Inc RP101N121D-TR-FE	Positive	85 °C	-40 °C	75 dB	5.25 V	1.2 V	SC-74A SOT-753	Over Current	0.5 V	1.81 mOhm	300 mA	SOT-23-5	Surface Mount	1	Enable
Nisshinbo Micro Devices Inc RP101K281B5-TR	Positive	85 °C	-40 °C		5.25 V	2.85 V	4-UDFN Exposed Pad	Over Current	0.23 V	1.81 mOhm	300 mA	DFN(PL)1612-4	Surface Mount	1	Enable
