902-0125-000

Active

ROBOTIS

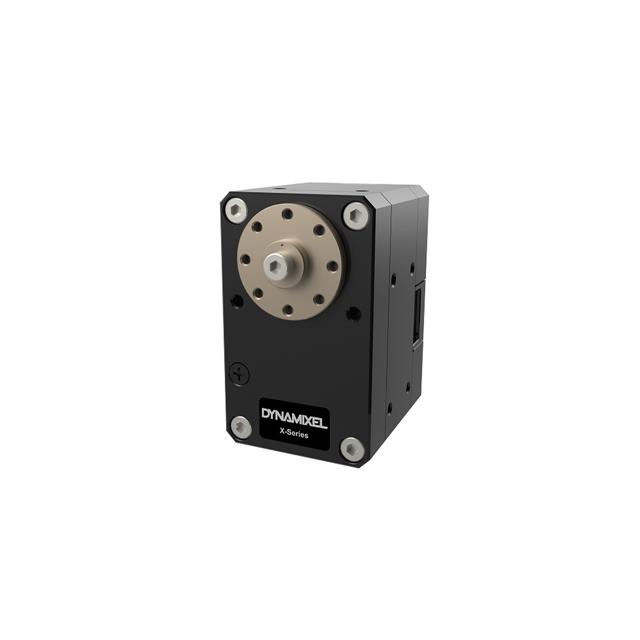

XM430-W210-T DYNAMIXEL SERVO

Search across all available documentation for this part.

Active

ROBOTIS

XM430-W210-T DYNAMIXEL SERVO

Technical Specifications

Parameters and characteristics for this part

Specification	902-0125-000

Encoder Type	Absolute
Features	Integrated Controller
Function	Servomotor
Gear Reduction Ratio	212.6
Motor Type	Brushed
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-5 °C
RPM	77 RPM
Size / Dimension [x]	1.83 in
Size / Dimension [x]	46.5 mm
Size / Dimension [y]	28.5 mm
Size / Dimension [y]	1.122 in
Termination Style	Connector
Torque - Max Momentary (oz-in / mNm)	3000 mNm
Torque - Max Momentary (oz-in / mNm)	467.4 oz-in
Type	DC Motor
Voltage - Rated	12 VDC
Weight	82 g
Weight	0.181 lb

Part	Features	Weight	Weight	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Encoder Type	Gear Reduction Ratio	Motor Type	Function	RPM
ROBOTIS 902-0125-000	Integrated Controller	82 g	0.181 lb	DC Motor	1.83 in	28.5 mm	46.5 mm	1.122 in	12 VDC	3000 mNm	467.4 oz-in	Connector	80 C	-5 °C	Absolute	212.6	Brushed	Servomotor	77 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 269.90

General part information

Brushed DC Motor Servomotor 77 RPM Absolute 12VDC
