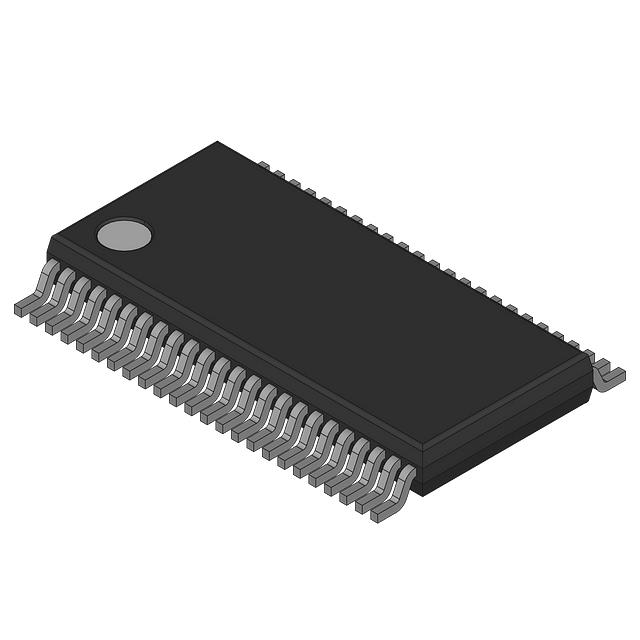

74LVC162244APFG

Obsolete

IDT, Integrated Device Technology Inc

IC BUFF NON-INVERT 3.6V 48TVSOP

Search across all available documentation for this part.

Obsolete

IDT, Integrated Device Technology Inc

IC BUFF NON-INVERT 3.6V 48TVSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74LVC162244APFG

Current - Output High, Low [custom]	12 mA
Current - Output High, Low [custom]	12 mA
Logic Type	Buffer, Non-Inverting
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Package / Case	0.173 in, 4.4 mm
Package / Case	48-TFSOP
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

Part	Logic Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Elements	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Bits per Element
IDT, Integrated Device Technology Inc 74LVC162244APFG	Buffer Non-Inverting	85 °C	-40 °C	0.173 in 4.4 mm	48-TFSOP	3-State	2.7 V	3.6 V	4	Surface Mount	12 mA	12 mA	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	592	$ 0.51

General part information

Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 48-TVSOP

Technical documentation and resources

No documents available
