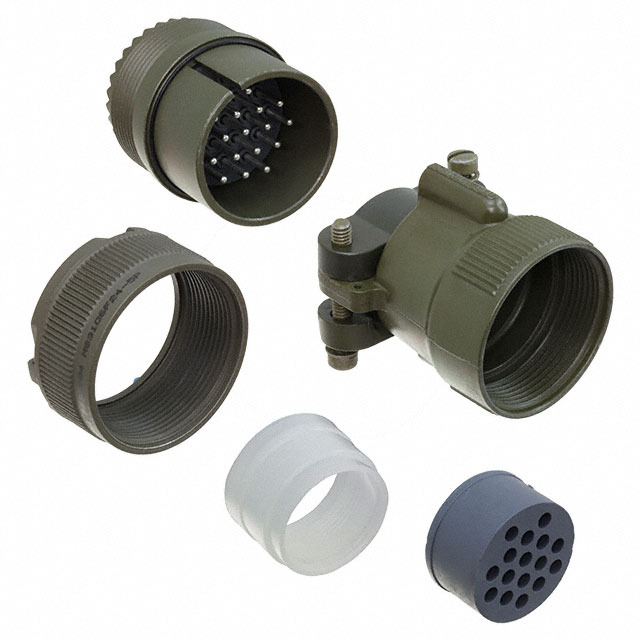

MS3106F24-5P
ActiveITT Cannon, LLC
CONN PLUG MALE 16P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
MS3106F24-5P
ActiveITT Cannon, LLC
CONN PLUG MALE 16P SILV SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106F24-5P |
|---|---|
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 22 A |
| Features | Coupling Nut, Cable Clamp |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 24-5 |
| Voltage Rating | 700 VDC, 500 VAC |
MS3106F24 Series
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Connector Type | Number of Positions | Color | Contact Finish - Mating | Voltage Rating | Mounting Type | Features | Qualification | Shell Material | Grade | Shell Finish | Primary Material | Ingress Protection | Shell Size - Insert | Number of Positions | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | 74 A | -55 °C | 125 °C | X | Male Pins Plug | 4 | Olive Drab | Silver | 900 VAC 1250 VDC | Free Hanging (In-Line) | Cable Clamp Coupling Nut | MIL-DTL-5015 | Aluminum Alloy | Military | Olive Drab Cadmium | Metal | Environment Resistant | 24-22 | |||
ITT Cannon, LLC | 22 A 41 A | -55 °C | 125 °C | N | Male Pins Plug | Olive Drab | Silver | 500 VAC 700 VDC | Free Hanging (In-Line) | Cable Clamp Coupling Nut | MIL-DTL-5015 | Aluminum Alloy | Military | Olive Drab Cadmium | Metal | Environment Resistant | 24-7 | 16 | |||
ITT Cannon, LLC | 22 A | -55 °C | 125 °C | N | Male Pins Plug | Olive Drab | Silver | 500 VAC 700 VDC | Free Hanging (In-Line) | Cable Clamp Coupling Nut | MIL-DTL-5015 | Aluminum Alloy | Military | Olive Drab Cadmium | Metal | Environment Resistant | 24-5 | 16 | |||
ITT Cannon, LLC | 22 A | -55 °C | 125 °C | W | Male Pins Plug | 24 | Olive Drab | Silver | 200 VAC 250 VDC | Free Hanging (In-Line) | Cable Clamp Coupling Nut | MIL-DTL-5015 | Aluminum Alloy | Military | Olive Drab Cadmium | Metal | Environment Resistant | 28 | 24 | ||
ITT Cannon, LLC | 22 A | -55 °C | 125 °C | Y | Male Pins Plug | Olive Drab | Silver | 500 VAC 700 VDC | Free Hanging (In-Line) | Cable Clamp Coupling Nut | MIL-DTL-5015 | Aluminum Alloy | Military | Olive Drab Cadmium | Metal | Environment Resistant | 24-5 | 16 | |||
ITT Cannon, LLC | 74 A | -55 °C | 125 °C | N | Male Pins Plug | 4 | Olive Drab | Silver | 900 VAC 1250 VDC | Free Hanging (In-Line) | Cable Clamp Coupling Nut | MIL-DTL-5015 | Aluminum Alloy | Military | Olive Drab Cadmium | Metal | Environment Resistant | 24-22 | |||
ITT Cannon, LLC | 22 A | -55 °C | 125 °C | Z | Female Sockets Plug | Olive Drab | Silver | 500 VAC 700 VDC | Free Hanging (In-Line) | Cable Clamp Coupling Nut | MIL-DTL-5015 | Aluminum Alloy | Military | Olive Drab Cadmium | Metal | Environment Resistant | 24-5 | 16 | |||
ITT Cannon, LLC | 41 A | -55 °C | 125 °C | N | Female Sockets Plug | 7 | Olive Drab | Silver | 900 VAC 1250 VDC | Free Hanging (In-Line) | Cable Clamp Coupling Nut | MIL-DTL-5015 | Aluminum Alloy | Military | Olive Drab Cadmium | Metal | Environment Resistant | 24-2 |
