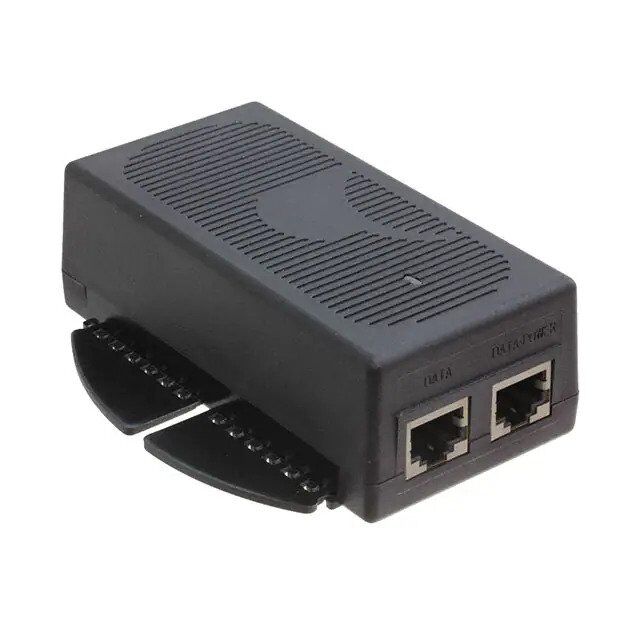

GT-96300-3624-T3-PP

Active

GlobTek, Inc.

POE INJECTOR 24V 36W WALL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GT-96300-3624-T3-PP

Active

GlobTek, Inc.

POE INJECTOR 24V 36W WALL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT-96300-3624-T3-PP

Approval Agency	VCCI, ETL, UKRSepro, CE, PSE, EAC, CCC, CB, S-Mark, RCM
Compliance	IEEE802.3at
Current - Output	1.5 A
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps
Efficiency	Level VI
Features	SCP, OCP, OVP
Input Connector	IEC 320-C14
Mounting Type	Wall Mount
Number of Ports	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	36 W
Size / Dimension [x]	107 mm
Size / Dimension [x]	4.21 "
Size / Dimension [y]	55 mm
Size / Dimension [y]	2.17 in
Size / Dimension [z]	1.41 in
Size / Dimension [z]	35.7 mm
Standard Number	60335-1, 60950-1, 62368-1
Type	Passive Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

GT-96300 Series

Part	Number of Ports	Data Rate	Efficiency	Current - Output	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Output	Output Connector	Power (Watts) - Per Port	Voltage - Input [Min]	Voltage - Input [Max]	Compliance	Input Connector	Standard Number	Size / Dimension [y]	Size / Dimension [z]
GlobTek, Inc. GT-96300-3624-T3-PP	1	10 Mbps 100 Mbps 1000 Mbps	Level VI	1.5 A	CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI	107 mm	55 mm	4.21 "	1.41 in	2.17 in	35.7 mm	OCP OVP SCP	Wall Mount	-10 °C	40 °C	Passive Injector	24 V	RJ45 (Data Power)	36 W	90 VAC	264 VAC	IEEE802.3at	IEC 320-C14	60335-1 60950-1 62368-1
GlobTek, Inc. GT-96300-3656-R2-AP	1	10 Mbps 100 Mbps 1000 Mbps	Level VI	640 mA	CB CCC CE EAC ETL PSE S-Mark UKRSepro VCCI	104 mm		4.09 in	1.58 "	2.13 in		OCP OVP SCP	Wall Mount	-10 °C	40 °C	Midspan Injector	56 V	RJ45 (Data Power)	36 W	90 VAC	264 VAC	IEEE802.3at	IEC 320-C8 (Power) RJ45 (Data)	60335-1 60950-1 62368-1	54 mm	40.2 mm
GlobTek, Inc. GT-96300-3648-T3-PP	1	10 Mbps 100 Mbps 1000 Mbps	Level VI		CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI	107 mm	40 mm	4.21 "	1.41 in	1.57 "	35.7 mm	OCP OVP SCP	Desktop	-10 °C	40 °C	Midspan Injector	48 V	RJ45 (Data Power)	36 W	90 VAC	264 VAC	IEEE802.3af	IEC 320-C14	60335-1 60950-1 62368-1
GlobTek, Inc. GT-96300-3656-T2APOE	1	10 Mbps 100 Mbps 1000 Mbps	Level VI	640 mA	CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI	107 mm	55 mm	4.21 "	1.41 in	2.17 in	35.7 mm	OCP OVP SCP	Desktop	-10 °C	40 °C	Midspan Injector	56 V	RJ45 (Data Power)	36 W	90 VAC	264 VAC	IEEE802.3at	IEC 320-C8	60335-1 60950-1 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 24.39

Description

General part information

GT-96300 Series

24V Power Over Ethernet (POE) 1 Port Passive Injector 10/100/1000 Mbps Data Rate
