LS-2006/PSA-12-12(6)

Obsolete

3M (TC)

ISOLOSS LS-2006/PSA GASKET FOAM

Search across all available documentation for this part.

Obsolete

3M (TC)

ISOLOSS LS-2006/PSA GASKET FOAM

Technical Specifications

Parameters and characteristics for this part

Specification	LS-2006/PSA-12-12(6)

Color	Black
Density	20 lb/ft³
Material	Polyurethane
Material Flammability Rating	UL94 HBF
Size / Dimension [x]	12 in
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	12 "
Size / Dimension [y]	304.8 mm
Thickness	1.52 mm
Thickness	0.06 in

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Density	Material	Material Flammability Rating	Color	Thickness	Thickness	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [x]
3M (TC) LS-2006/PSA-1"X180"-1RL	1 in	180 in	25.4 mm 4572 mm	20 lb/ft³	Polyurethane	UL94 HBF	Black	1.52 mm	0.06 in
3M (TC) LS-2006/PSA-1"CIRCLE-50PK				20 lb/ft³	Polyurethane	UL94 HBF	Black	1.52 mm	0.06 in	1 in	25.4 mm
3M (TC) LS-2006/PSA-12-12(6)	12 in	12 "		20 lb/ft³	Polyurethane	UL94 HBF	Black	1.52 mm	0.06 in			304.8 mm	304.8 mm
3M (TC) LS-2006/PSA-0.5"X180"-1RL	0.5 in	180 in		20 lb/ft³	Polyurethane	UL94 HBF	Black	1.52 mm	0.06 in			4572 mm	12.7 mm
3M (TC) LS-2006/PSASQ-1(50)				20 lb/ft³	Polyurethane	UL94 HBF	Black	1.52 mm	0.06 in
3M (TC) LS-2006/PSASQ-2(50)	2 in	2 in		20 lb/ft³	Polyurethane	UL94 HBF	Black	1.52 mm	0.06 in			50.8 mm	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

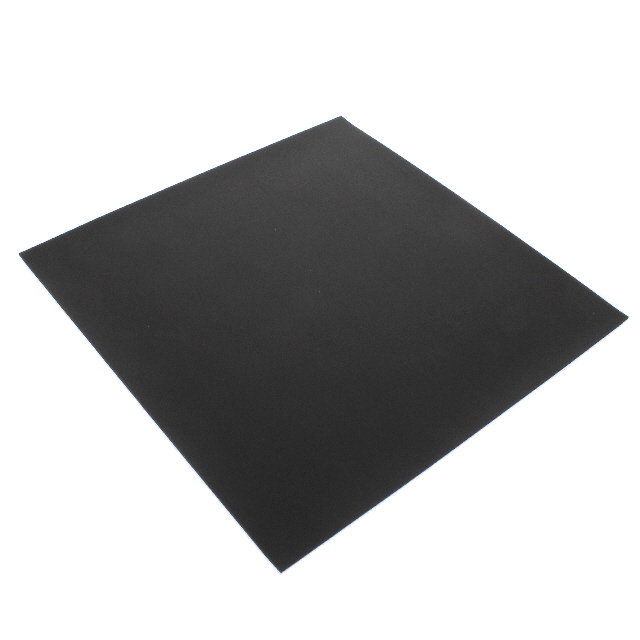

Foam 12.00" W x 12.00" L (304.8mm x 304.8mm) X 0.060" (1.52mm) Polyurethane Black

Technical documentation and resources

No documents available
