100023037

Active

Telegartner Inc

CU-CN MFP8 T568A C6A D1-1.6

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN MFP8 T568A C6A D1-1.6

Technical Specifications

Parameters and characteristics for this part

Specification	100023037

Cable Type	Round Cable, Solid, Stranded Wires
Color	Black
Connector Type	Plug
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Strain Relief, Locking Hook, Protective Cap
Housing Material	Polycarbonate (PC)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat6a
Shield Material	Brass
Shielding	Shielded
Termination	IDC
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	22 AWG

Part	Termination	Features	Shielding	Color	Ratings	Wire Gauge [Min]	Wire Gauge [Max]	Shield Material	Connector Type	Contact Finish	Contact Material	Number of Positions/Contacts	Housing Material	Cable Type
Telegartner Inc 100023037	IDC	Locking Hook Protective Cap Strain Relief	Shielded	Black	Cat6a	22 AWG	27 AWG	Brass	Plug	Tin	Phosphor Bronze	8p8c (RJ45 Ethernet)	Polycarbonate (PC)	Round Cable Solid Stranded Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

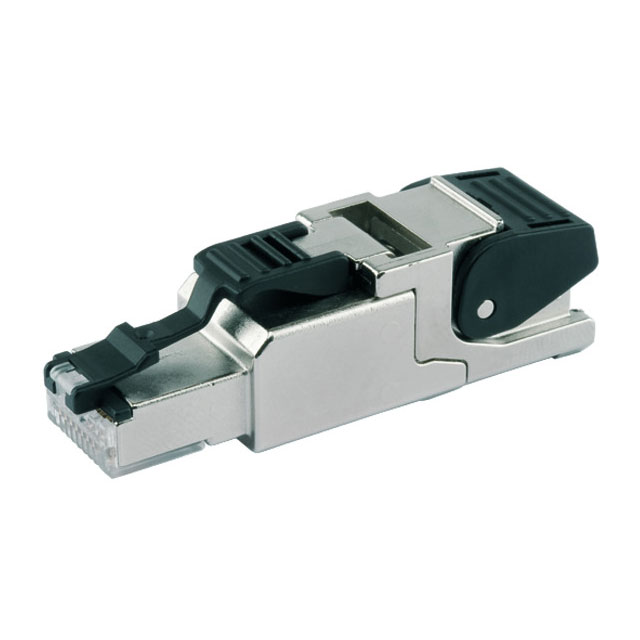

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
