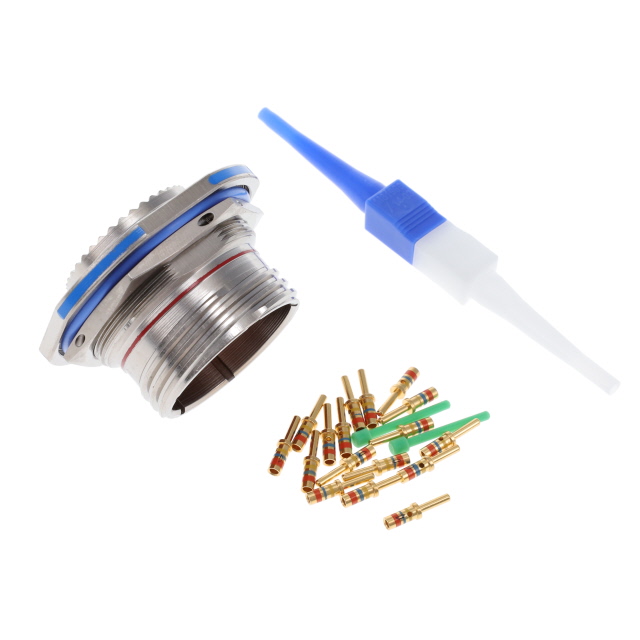

D38999/24FG16PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 16POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24FG16PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 16POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24FG16PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	16
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert	21-16
Shell Size, MIL	G
Shielding	Shielded
Termination	Crimp

D38999/24FG Series

Part	Ingress Protection	Qualification	Grade	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Termination	Shell Material	Contact Material	Mounting Feature	Color	Contact Finish - Mating	Number of Positions	Shell Size, MIL	Primary Material	Applications	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Connector Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Type	Housing Color	Contact Shape	Contact Size	Contact Size	Note	Contact Type	Shell Size - Insert	Contact Size	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Number of Positions
Amphenol Aerospace Operations D38999/24FG35HN	Environment Resistant	MIL-DTL-38999 Series III	Military	21	35	Crimp	Aluminum	Copper Alloy	Bulkhead - Front Side Nut	Silver	Gold	79	G	Metal	Aviation Marine Military	Electroless Nickel	2.54 çm	100 çin	N	Male Pins Receptacle	Shielded	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/24FG39HA-LC	Environment Resistant	MIL-DTL-38999 Series III	Military	21	39		Aluminum		Bulkhead - Front Side Nut			39	G			Electroless Nickel			A	Receptacle Housing	Shielded	-65 ░C	200 °C	For Male Pins	Silver	Circular	16 20	2 37	Contacts Not Included	Crimp
Amphenol Aerospace Operations D38999/24FG41PA-LC	Environment Resistant	MIL-DTL-38999 Series III	Military	21	41		Aluminum		Bulkhead - Front Side Nut			41	G			Electroless Nickel			A	Receptacle Housing	Shielded	-65 ░C	200 °C	For Male Pins	Silver	Circular	20		Contacts Not Included	Crimp
Amphenol Aerospace Operations D38999/24FG11HN-LC	Environment Resistant	MIL-DTL-38999 Series III	Military				Aluminum		Bulkhead - Front Side Nut			11	G			Electroless Nickel			N	Receptacle Housing	Shielded	-65 ░C	200 °C	For Male Pins	Silver	Circular	12		Contacts Not Included	Crimp	21-11
Amphenol Aerospace Operations D38999/24FG75SA-LC	Environment Resistant	MIL-DTL-38999 Series III	Military				Aluminum		Bulkhead - Front Side Nut			4	G			Electroless Nickel			A	Receptacle Housing	Shielded	-65 ░C	200 °C	For Female Sockets	Silver	Circular			Contacts Not Included	Crimp		8 Twinax	75	21
Amphenol Aerospace Operations D38999/24FG16PN	Environment Resistant	MIL-DTL-38999 Series III	Military			Crimp	Aluminum	Copper Alloy	Bulkhead - Front Side Nut	Silver	Gold		G	Metal	Aerospace Aviation Marine Military	Electroless Nickel	1.27 µm	50 µin	N	Male Pins Receptacle	Shielded	-65 ░C	200 °C								21-16				16
Amphenol Aerospace Operations D38999/24FG41JA	Environment Resistant	MIL-DTL-38999 Series III	Military	21	41	Crimp	Aluminum	Copper Alloy	Bulkhead - Front Side Nut	Silver	Gold	41	G	Metal	Aviation Marine Military	Electroless Nickel	2.54 çm	100 çin	A	Receptacle Female Sockets	Shielded	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/24FG39AA	Environment Resistant	MIL-DTL-38999 Series III	Military	21	39		Aluminum		Bulkhead - Front Side Nut			39	G			Electroless Nickel			A	Receptacle Housing	Shielded	-65 ░C	200 °C	For Male Pins	Silver	Circular	16 20	2 37	Contacts Not Included	Crimp
Amphenol Aerospace Operations D38999/24FG16AN	Environment Resistant	MIL-DTL-38999 Series III	Military				Aluminum		Bulkhead - Front Side Nut				G			Electroless Nickel			N	Receptacle Housing	Shielded	-65 ░C	200 °C	For Male Pins	Silver	Circular	16		Contacts Not Included	Crimp	21-16				16
Amphenol Aerospace Operations D38999/24FG35HA-LC	Environment Resistant	MIL-DTL-38999 Series III	Military	21	35		Aluminum		Bulkhead - Front Side Nut			79	G			Electroless Nickel			A	Receptacle Housing	Shielded	-65 ░C	200 °C	For Male Pins	Silver	Circular			Contacts Not Included	Crimp		22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 143.94
		10	$ 116.95
		25	$ 98.48
		50	$ 85.05
		100	$ 71.97
	Bulk	1	$ 372.87
		10	$ 293.30
		25	$ 268.23

Description

General part information

D38999/24FG Series

16 Position Circular Connector Receptacle, Male Pins Crimp
