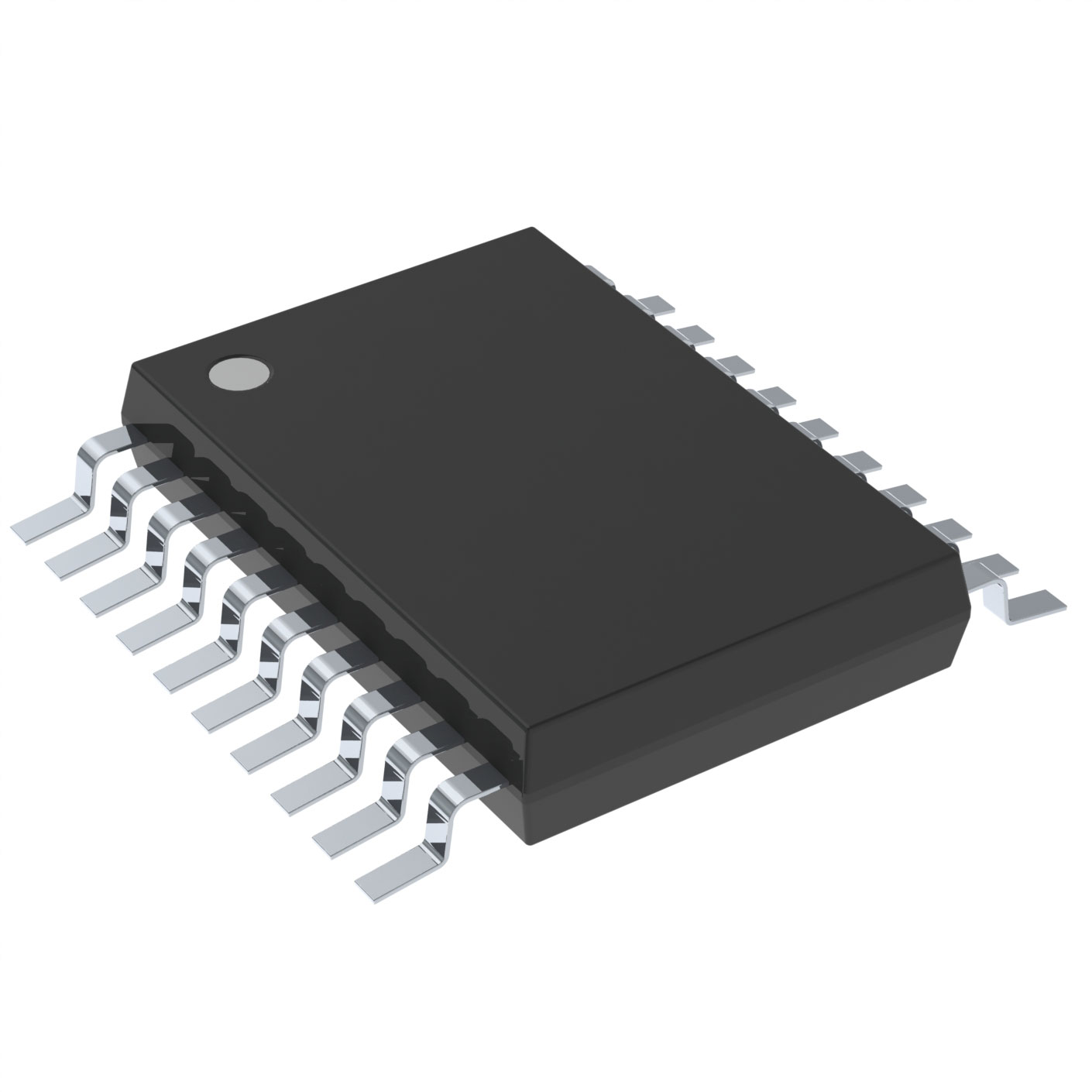

SN74ACT2226DWR
ObsoleteTexas Instruments
IC FIFO SYNC 64X1X2 20NS 24SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SN74ACT2226DWR
ObsoleteTexas Instruments
IC FIFO SYNC 64X1X2 20NS 24SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SN74ACT2226DWR |
|---|---|
| Access Time | 20 ns |
| Bus Directional | Uni-Directional |
| Current - Supply (Max) [Max] | 400 µA |
| Data Rate | 22 MHz |
| Function | Synchronous |
| FWFT Support | False |
| Memory Size | 128 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SOIC |
| Package / Case [custom] | 7.5 mm |
| Package / Case [custom] | 0.295 in |
| Programmable Flags Support | False |
| Retransmit Capability | False |
| Supplier Device Package | 24-SOIC |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
74ACT2226 Series
Synchronous FIFO 128 (64 x 1 x 2) Uni-Directional 22MHz 20ns 24-SOIC
