1056521-1

Active

TE Connectivity Aerospace, Defense and Marine

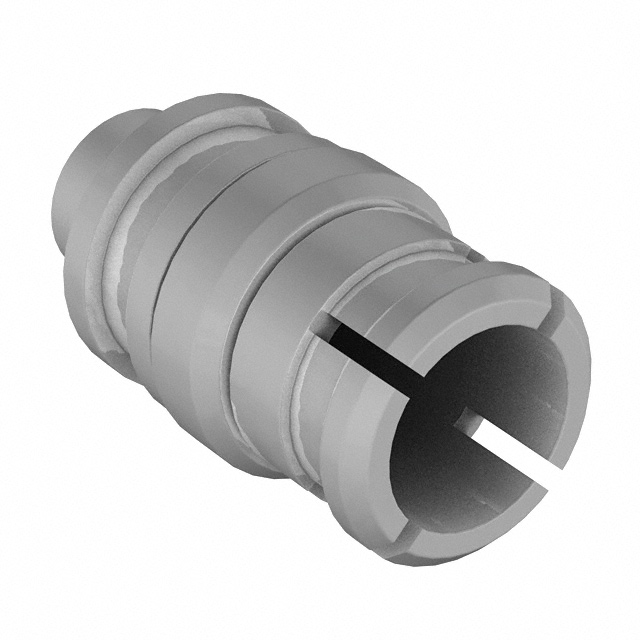

CONN SMP JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN SMP JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1056521-1

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	Semi Rigid
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	EMI Ring
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	Insulator, Connector, Contact
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Cable Group	Cable Group	Body Material	Frequency - Max [Max]	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Impedance	Shield Termination	Center Contact Plating	Number of Ports	Contact Termination	Dielectric Material	Housing Color	Connector Type	Voltage Rating	Features	Includes	Fastening Type	Body Finish
TE Connectivity Aerospace, Defense and Marine 1056521-1	Semi Rigid	0.047 in	Beryllium Copper	40 GHz	Beryllium Copper	-65 ░C	165 °C	Free Hanging (In-Line)	50 Ohms	Solder	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	EMI Ring	Connector Contact Insulator	Snap-On	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 23.47

General part information

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
