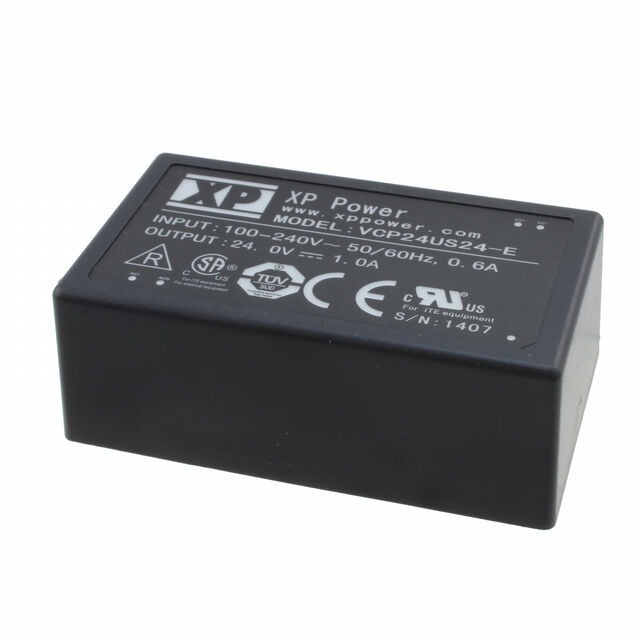

VCP24US24-E
ObsoleteXP POWER
AC/DC CONVERTER 24V 24W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VCP24US24-E
ObsoleteXP POWER
AC/DC CONVERTER 24V 24W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VCP24US24-E |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | EN, IEC, cUL |
| Current - Output (Max) [Max] | 1 A |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 2 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 24 W |
| Size / Dimension [x] | 79 mm |
| Size / Dimension [x] | 3.11 in |
| Size / Dimension [y] | 46 mm |
| Size / Dimension [y] | 1.81 in |
| Size / Dimension [z] | 1.12 in |
| Size / Dimension [z] | 28.5 mm |
| Standard Number | 60950-1, 60601-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 24 V |
| Weight | 150.14 g |
| Weight | 0.331 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VCP24US24 Series
Enclosed AC DC Converters 1 Output 24V 1A 90 ~ 264 VAC Input
