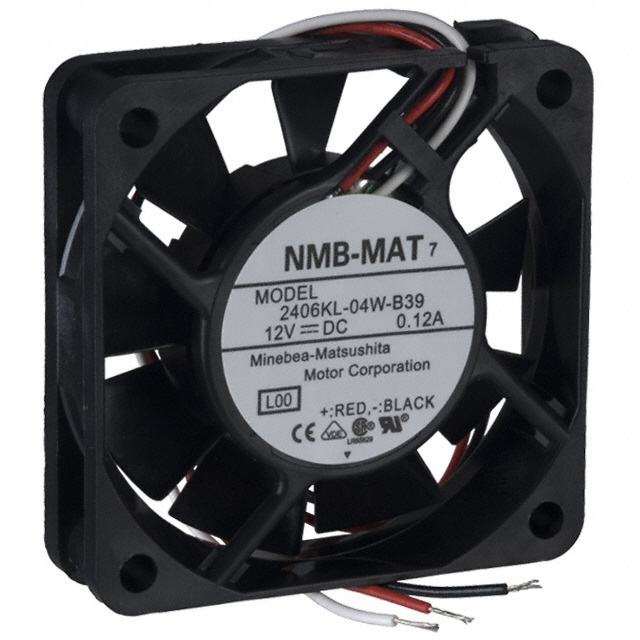

2406KL-04W-B39-L00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 60X15MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
2406KL-04W-B39-L00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 60X15MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2406KL-04W-B39-L00 |
|---|---|
| Bearing Type | Ball |
| Current Rating (Amps) | 0.09 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 28 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.08 W |
| RPM | 3600 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 0.125 in H2O |
| Static Pressure | 31.1 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Weight | 0.099 lb |
| Weight | 44.91 g |
| Width [x] | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
06015KA Series
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 14.1 CFM (0.395m³/min) 3 Wire Leads
