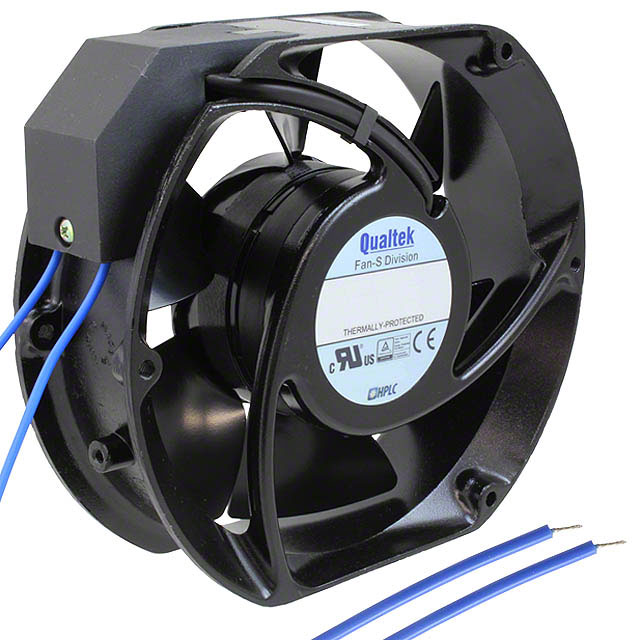

FDA2-17251QBHW4F

Active

Qualtek

FAN AXIAL 172X51MM 230VAC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 172X51MM 230VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage - Rated	Weight	Weight	Noise	Material - Blade	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Power (Watts)	Lifetime @ Temp.	Current Rating (Amps)	Air Flow	Air Flow	Width [y]	Approval Agency	Fan Type	Bearing Type	RPM	Static Pressure	Static Pressure
Qualtek FDA2-17251NBHT4D	2 Terminals	Aluminum	-20 °C	70 °C	-20 C	70 °C	IP56M - Dust Protected Water Resistant	115 VAC	907.2 g	2 lbs	59 dB(A)	Steel	151 mm	Rectangular/Rounded	172 mm	25 W	50000 Hrs	0.21 A	250 CFM	7 mł/min	51 mm	CE cURus TUV	Tubeaxial	Ball	3100 RPM
Qualtek FDA2-17251QBHW4F	2 Wire Leads	Aluminum	-20 °C	70 °C	-20 C	70 °C		230 VAC	907.2 g	2 lbs	59 dB(A)	Steel	151 mm	Rectangular/Rounded	172 mm	27 W	50000 Hrs	120 mA	250 CFM	7 mł/min	51 mm	CE cURus TUV	Tubeaxial	Ball	3100 RPM
Qualtek FDA2-17251NBKT3F	2 Terminals	Aluminum	-20 °C	70 °C	-20 C	70 °C		115 VAC	861.8 g	1.9 lbs	60 dB(A)	Plastic	151 mm	Rectangular/Rounded	172 mm	27 W	50000 Hrs	0.24 A	275 CFM	7.7 mł/min	51 mm	CE cURus TUV	Tubeaxial	Ball	3300 RPM	191.3 Pa	0.768 in H2O
Qualtek FDA2-17251NBHT4F	2 Terminals	Aluminum	-20 °C	70 °C	-20 C	70 °C		115 VAC	907.2 g	2 lbs	59 dB(A)	Steel	151 mm	Rectangular/Rounded	172 mm	25 W	50000 Hrs	0.21 A	250 CFM	7 mł/min	51 mm	CE cURus TUV	Tubeaxial	Ball	3100 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 151mm H Ball 250.0 CFM (7.00mł/min) 2 Wire Leads

Technical documentation and resources
