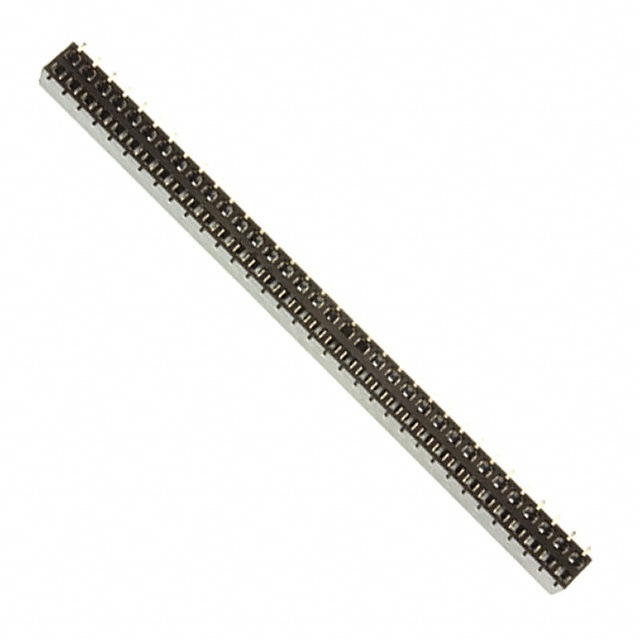

PPTC342KFMS
ObsoleteSullins Connector Solutions
CONN HDR 68POS 0.1 TIN SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PPTC342KFMS
ObsoleteSullins Connector Solutions
CONN HDR 68POS 0.1 TIN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PPTC342KFMS |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.299 in |
| Insulation Height | 7.6 mm |
| Insulation Material | Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 68 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 250 VDC |
PPTC342 Series
| Part | Number of Rows | Number of Positions | Contact Finish - Post | Contact Shape | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Voltage Rating | Material Flammability Rating | Connector Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Insulation Color | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Material | Contact Material | Insulation Height | Insulation Height | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 2 | 68 | Tin | Square | 2.54 mm | 0.1 in | Female Socket | 250 VDC | UL94 V-0 | Header | 3 A | -40 °C | 105 ░C | 3.15 mm | 0.124 " | All | Black | Solder | Through Hole Right Angle | 0.1 in | 2.54 mm | Push-Pull | Polyester | Phosphor Bronze | |||
Sullins Connector Solutions | 2 | 68 | Tin | Square | 2.54 mm | 0.1 in | Female Socket | 250 VDC | UL94 V-0 | Header | 3 A | -40 °C | 125 °C | All | Black | Solder | Surface Mount | 0.1 in | 2.54 mm | Push-Pull | Polyester | Phosphor Bronze | 0.299 in | 7.6 mm | |||
Sullins Connector Solutions | 2 | 68 | Tin | Square | 2.54 mm | 0.1 in | Female Socket | 250 VDC | UL94 V-0 | Header | 3 A | -40 °C | 105 ░C | 3.2 mm | All | Black | Solder | Through Hole | 0.1 in | 2.54 mm | Push-Pull | Polyester | Phosphor Bronze | 0.335 " | 8.51 mm | 0.126 in | |
Sullins Connector Solutions | 2 | 68 | Tin | Square | 2.54 mm | 0.1 in | Female Socket | 250 VDC | UL94 V-0 | Header | 3 A | -40 °C | 105 ░C | 3.2 mm | All | Black | Solder | Through Hole | 0.1 in | 2.54 mm | Push-Pull | Polyester | Phosphor Bronze | 0.335 " | 8.51 mm | 0.126 in | |
Sullins Connector Solutions | 2 | 68 | Tin | Square | 2.54 mm | 0.1 in | Female Socket | 250 VDC | UL94 V-0 | Header | 3 A | -40 °C | 105 ░C | 3.15 mm | 0.124 " | All | Black | Solder | Through Hole Right Angle | 0.1 in | 2.54 mm | Push-Pull | Polyester | Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PPTC342 Series
68 Position Header Connector 0.100" (2.54mm) Surface Mount Tin
