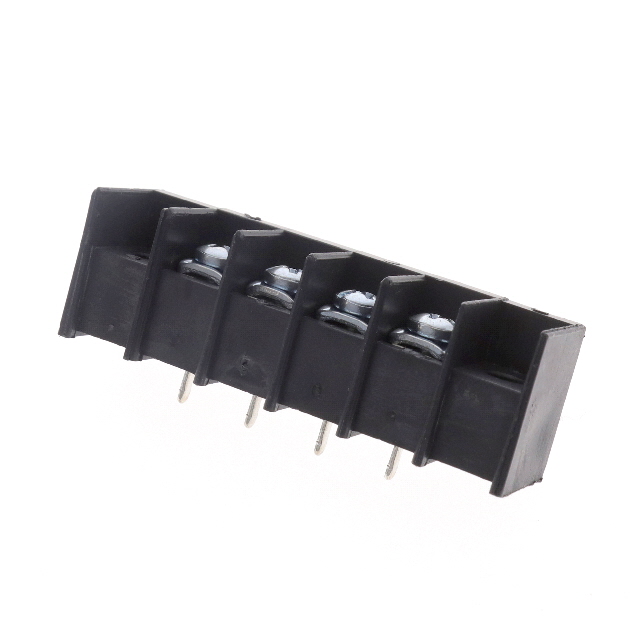

T37011-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37011-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T37011-04-0

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

T37011 Series

Part	Pitch [x]	Pitch [x]	Terminal Block Type	Material Flammability Rating	Bottom Termination	Wire Gauge [Min]	Wire Gauge [Max]	Material - Insulation	Current Rating (Amps)	Barrier Type	Voltage Rating	Operating Temperature	Number of Circuits	Mounting Type	Features	Top Termination	Number of Rows	Number of Wire Entries
Curtis Industries T37011-04-0	9.53 mm	0.375 in	Barrier Block	UL94 V-0	PC Pin	12 AWG	22 AWG	Polypropylene (PP)	20 A	3 Wall (Tri)	300 VDC	105 C	4	Chassis Panel Through Hole	Flange	Screws with Captive Plate	1	4
Curtis Industries T37011-06-0	9.53 mm	0.375 in	Barrier Block	UL94 V-0	PC Pin	12 AWG	22 AWG	Polypropylene (PP)	20 A	3 Wall (Tri)	300 VDC	105 C	6	Chassis Panel Through Hole	Flange	Screws with Captive Plate	1	6
Curtis Industries T37011-16-0	9.53 mm	0.375 in	Barrier Block	UL94 V-0	PC Pin	12 AWG	22 AWG	Polypropylene (PP)	20 A	3 Wall (Tri)	300 VDC	105 C	16	Chassis Panel Through Hole	Flange	Screws with Captive Plate	1	16
Curtis Industries T37011-15-0	9.53 mm	0.375 in	Barrier Block	UL94 V-0	PC Pin	12 AWG	22 AWG	Polypropylene (PP)	20 A	3 Wall (Tri)	300 VDC	105 C	15	Chassis Panel Through Hole	Flange	Screws with Captive Plate	1	15
Curtis Industries T37011-03-0	9.53 mm	0.375 in	Barrier Block	UL94 V-0	PC Pin	12 AWG	22 AWG	Polypropylene (PP)	20 A	3 Wall (Tri)	300 VDC	105 C	3	Chassis Panel Through Hole	Flange	Screws with Captive Plate	1	3
Curtis Industries T37011-11-0	9.53 mm	0.375 in	Barrier Block	UL94 V-0	PC Pin	12 AWG	22 AWG	Polypropylene (PP)	20 A	3 Wall (Tri)	300 VDC	105 C	11	Chassis Panel Through Hole	Flange	Screws with Captive Plate	1	11
Curtis Industries T37011-05-0	9.53 mm	0.375 in	Barrier Block	UL94 V-0	PC Pin	12 AWG	22 AWG	Polypropylene (PP)	20 A	3 Wall (Tri)	300 VDC	105 C	5	Chassis Panel Through Hole	Flange	Screws with Captive Plate	1	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.26
		10	$ 2.11
		25	$ 1.89
		50	$ 1.76
		100	$ 1.67
		250	$ 1.58
		500	$ 1.54
		1000	$ 1.50
		5000	$ 1.45

Description

General part information

T37011 Series

4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available
