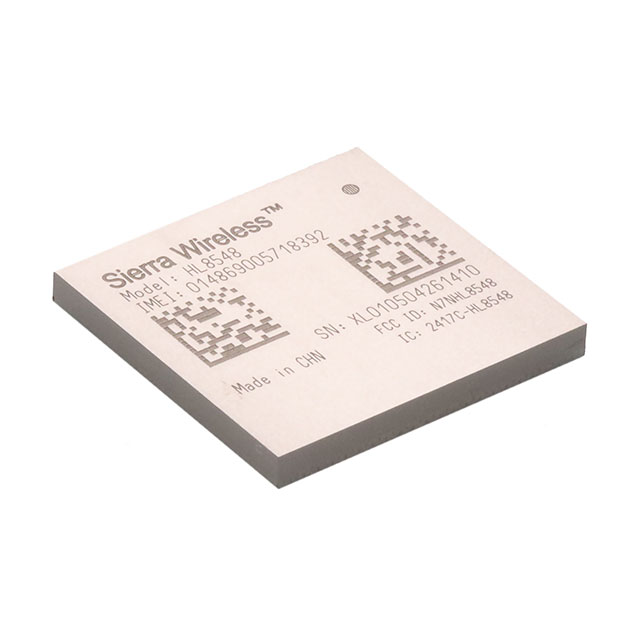

HL8548_1103971

Obsolete

Semtech Corporation

RF TXRX MOD CELL NAV SMD

Search across all available documentation for this part.

Obsolete

Semtech Corporation

RF TXRX MOD CELL NAV SMD

Technical Specifications

Parameters and characteristics for this part

Specification	HL8548_1103971

Antenna Type	Antenna Not Included
Data Rate	7.2 Mbps
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	146-LGA Module
Protocol	GNSS, HSPA, GLONASS, GSM, EDGE, GPS, GPRS
RF Family/Standard	Cellular, Navigation
Serial Interfaces	ADC, USB, UART, GPIO

Part	Package / Case	RF Family/Standard	Protocol	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Data Rate	Frequency	Serial Interfaces
Semtech Corporation HL8548_1103971	146-LGA Module	Cellular Navigation	EDGE GLONASS GNSS GPRS GPS GSM HSPA	Surface Mount	85 °C	-40 °C	Antenna Not Included	7.2 Mbps	850 MHz 900 MHz 1800 MHz 1900 MHz	ADC GPIO UART USB
Semtech Corporation HL8548_1102648	Module	Cellular	EDGE GLONASS GNSS GPRS GPS GSM	Surface Mount	85 °C	-40 °C		10 Mbps	850 MHz 900 MHz 1800 MHz 1900 MHz	UART USB
Semtech Corporation HL8548-G_1103969	146-LGA Module	Cellular Navigation	EDGE GLONASS GNSS GPRS GPS GSM HSPA	Surface Mount	85 °C	-40 °C	Antenna Not Included	7.2 Mbps	850 MHz 900 MHz 1800 MHz 1900 MHz	ADC GPIO UART USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation EDGE, GLONASS, GNSS, GPRS, GPS, GSM, HSPA Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
