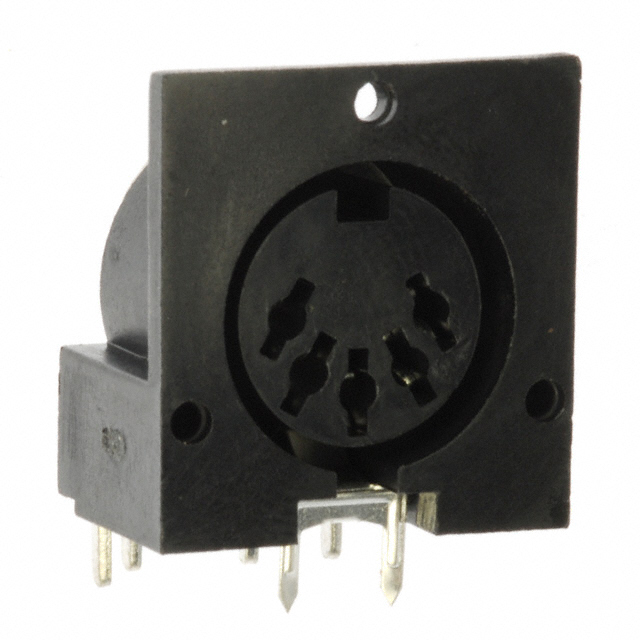

SDS-50J

Active

CUI Devices

CONN RCPT FMALE DIN 5POS SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE DIN 5POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SDS-50J

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	DIN
Shielding	Unshielded
Termination	Solder
Voltage Rating	100 VAC

Part	Current Rating (Amps)	Primary Material	Shell Size - Insert	Mounting Type	Color	Orientation	Shielding	Termination	Voltage Rating	Material Flammability Rating	Features	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Material	Shell Material
CUI Devices SDS-50J	2 A	Plastic	DIN	Through Hole Right Angle	Black	Keyed	Unshielded	Solder	100 VAC	UL94 V-0	Ground	Push-Pull	85 °C	-40 °C	Receptacle Female Sockets	Brass	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder
