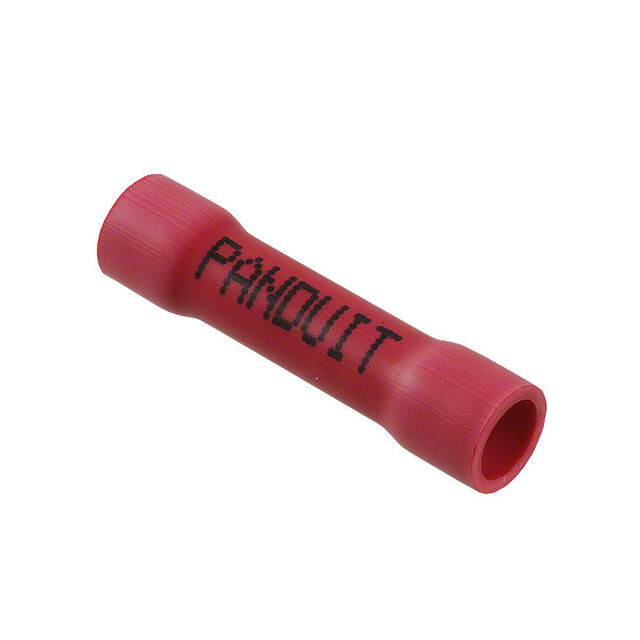

BSV18X-E
ObsoletePanduit Corp
CONN SPLICE 18-22 AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BSV18X-E |
|---|---|
| Color | Red |
| Features | Brazed Seam |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.22 | |
| 20 | $ 1.11 | |||
| 40 | $ 1.08 | |||
| 60 | $ 1.07 | |||
Description
General part information
BSV18X Series
Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG Red
