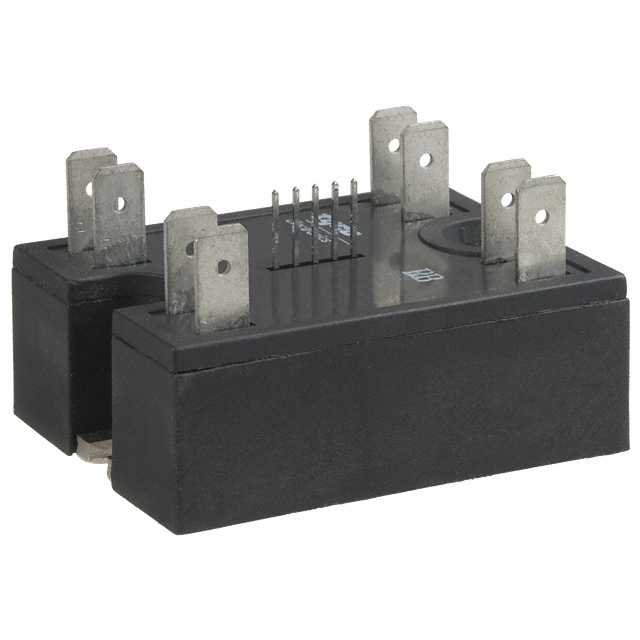

SSRQ-240D20
ActiveTE Connectivity Potter & Brumfield Relays
SSR RELAY SPST-NO 20A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
SSRQ-240D20
ActiveTE Connectivity Potter & Brumfield Relays
SSR RELAY SPST-NO 20A 24-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSRQ-240D20 |
|---|---|
| Circuit | SPST-NO (1 Form A) x 4 |
| Load Current | 20 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage - Input [Max] | 15 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 158.40 | |
Description
General part information
SSRQ-240 Series
Solid State SPST-NO (1 Form A) x 4 Hockey Puck
Documents
Technical documentation and resources
No documents available
