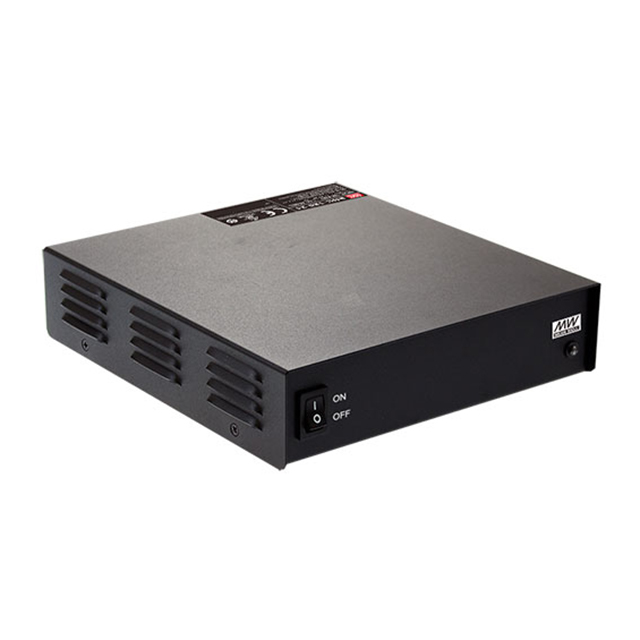

ENP-180-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 179W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 179W

Technical Specifications

Parameters and characteristics for this part

Specification	ENP-180-12

Applications	ITE (Commercial)
Approval Agency	CE, CB, cULus
Current - Output 1	13 A
Efficiency	91 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	179 W
Size / Dimension [x]	192 mm
Size / Dimension [x]	7.56 "
Size / Dimension [y]	178 mm
Size / Dimension [y]	7.01 "
Size / Dimension [z]	1.79 "
Size / Dimension [z]	45.5 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	13.8 V

Part	Minimum Load Required	Power (Watts)	Applications	Number of Outputs	Features	Voltage - Input [Min]	Voltage - Input [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Current - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Voltage - Isolation	Efficiency
MEAN WELL USA Inc. ENP-180-12		179 W	ITE (Commercial)	1	Adjustable Output PFC Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Enclosed	70 °C	-30 °C	13.8 V	13 A	1.79 "	45.5 mm	178 mm	7.01 "	192 mm	7.56 "	CB CE cULus	3000 V	91 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 68.25

General part information

Enclosed AC DC Converters 1 Output 13.8V 90 ~ 264 VAC, 127 ~ 370 VDC Input
