03828DA-12Q-AU-00

Active

NMB TECHNOLOGIES

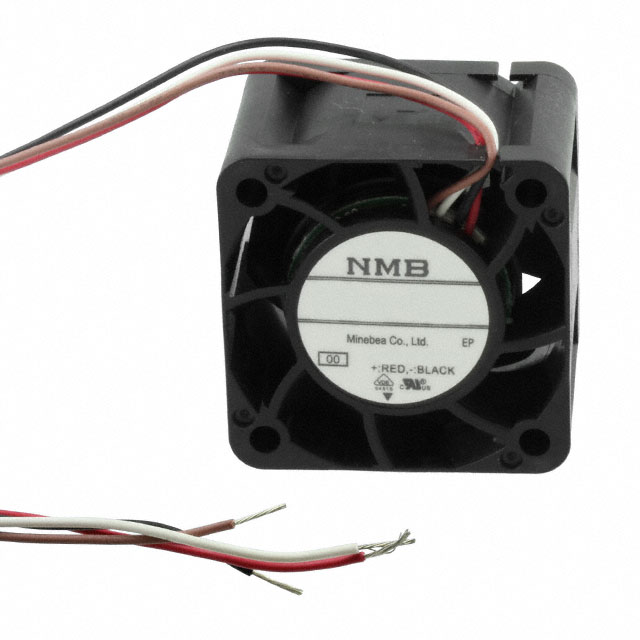

FAN AXIAL 38X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL 38X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	03828DA-12Q-AU-00

Air Flow	19.4 CFM
Air Flow	0.543 m³/min
Approval Agency	VDE, UL, cUL
Bearing Type	Ball
Current Rating (Amps)	490 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5.9 W
RPM	20000 RPM
Size / Dimension [x]	38 mm
Size / Dimension [z]	38 mm
Static Pressure	540 Pa
Static Pressure	2.16 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	47.17 g
Weight	0.104 lb
Width [y]	28 mm

Part	Weight	Weight	Material - Blade	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Features	Bearing Type	Power (Watts)	Air Flow	Air Flow	Fan Type	Lifetime @ Temp.	RPM	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Material - Frame	Noise	Voltage - Rated	Termination	Approval Agency
NMB TECHNOLOGIES 03828DA-12Q-AU-00	47.17 g	0.104 lb	Plastic	540 Pa	2.16 in H2O	38 mm	38 mm	70 °C	70 °C	-10 °C	-10 °C	490 mA	Auto Restart PWM Control Speed Sensor (Tach)	Ball	5.9 W	19.4 CFM	0.543 m³/min	Tubeaxial	70000 Hrs	20000 RPM	13.2 VDC	7 V	28 mm	Plastic	55 dB	12 VDC	4 Wire Leads	cUL UL VDE
NMB TECHNOLOGIES 03828DA-12R-AU-00			Plastic	650.1 Pa	2.61 in H2O	38 mm	38 mm	70 °C	70 °C	-10 °C	-10 °C	0.63 A	Auto Restart PWM Control Speed Sensor (Tach)	Ball	7.56 W	21.5 CFM	0.602 m³/min	Tubeaxial	70000 Hrs	22000 RPM	13.2 VDC	7 V	28 mm	Plastic	58 dB(A)	12 VDC	4 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.21

General part information

Fan Tubeaxial 12VDC Square - 38mm L x 38mm H Ball 19.4 CFM (0.543m³/min) 4 Wire Leads
