19300160271ML

Active

HARTING Technology Group

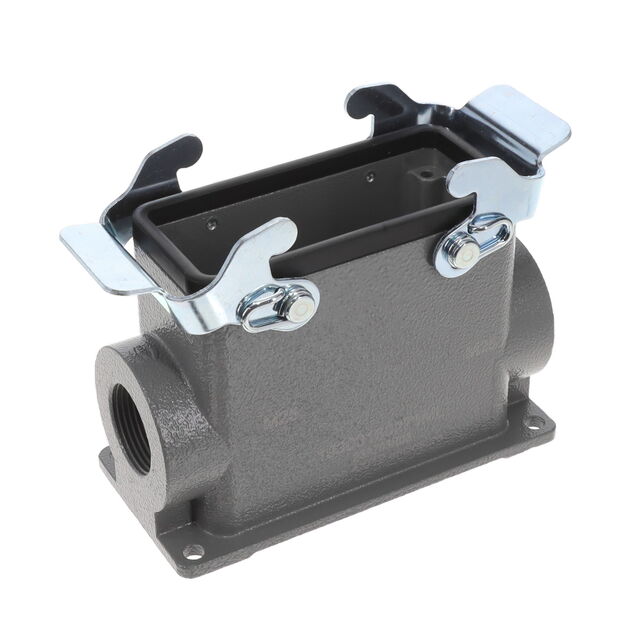

16B SURFACE MOUNT HOUSING, DOUBLE LEVER, HIGH CONSTRUCTION, 2XM25 W/ METAL LEVERS

Search across all available documentation for this part.

Active

HARTING Technology Group

16B SURFACE MOUNT HOUSING, DOUBLE LEVER, HIGH CONSTRUCTION, 2XM25 W/ METAL LEVERS

Technical Specifications

Parameters and characteristics for this part

Specification	19300160271ML

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	4.606 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.181 "
Size / Dimension [z]	80.8 mm
Style	Side Entry
Thread Size	M25

Part	Features	Lock Location	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Style	Housing Color	Housing Finish	Ingress Protection	Housing Material
HARTING Technology Group 19300160271ML	Feed Through	Locking Clip (2) on Base Bottom	Base - Box Mount	125 °C	-40 °C	16 B	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm	M25	Side Entry	Gray	Powder Coated	IP65 - Dust Tight Water Resistant	Aluminum Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M25 16B IP65 - Dust Tight, Water Resistant
