DS28E80EVKIT#

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR DS28E80

Search across all available documentation for this part.

DocumentsDS28E80

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR DS28E80

DocumentsDS28E80

Technical Specifications

Parameters and characteristics for this part

Specification	DS28E80EVKIT#

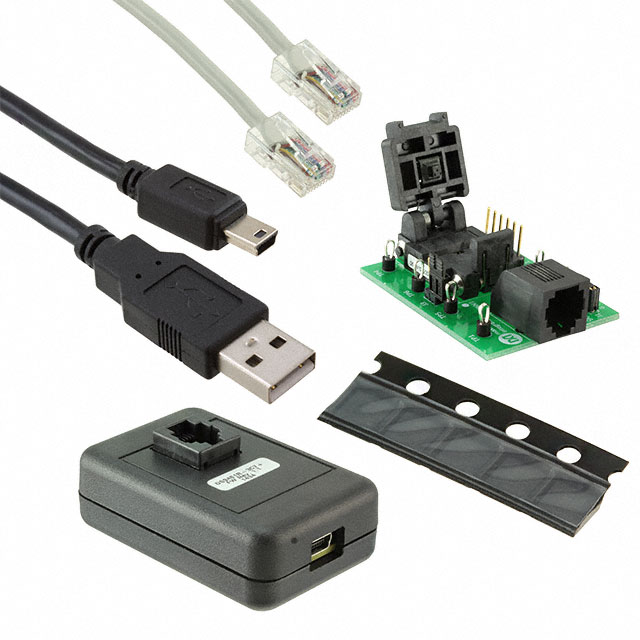

Contents	Cable(s), Board(s)
Function	EEPROM
Secondary Attributes	Graphical User Interface (GUI)
Supplied Contents	Cable(s), Board(s)
Type	Memory
Utilized IC / Part	DS28E80

Part	Function	Supplied Contents	Contents	Type	Secondary Attributes	Utilized IC / Part	Access Time	Supplier Device Package	Memory Organization	Memory Interface	Memory Size	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Memory Format
Analog Devices Inc./Maxim Integrated DS28E80EVKIT#	EEPROM	Board(s) Cable(s)	Board(s) Cable(s)	Memory	Graphical User Interface (GUI)	DS28E80
Analog Devices Inc./Maxim Integrated DS28E80Q+T							2 µs	6-TDFN (3x3)	2K x 1	1-Wire®	256 B	Non-Volatile	85 °C	-40 °C	Surface Mount	2.97 V	3.63 V	EEPROM	EEPROM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.30

General part information

DS28E80 EEPROM Memory Evaluation Board

Technical documentation and resources
