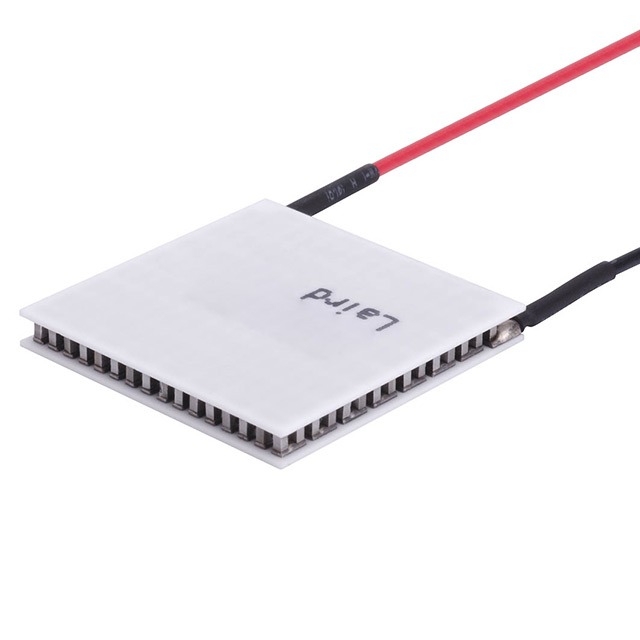

71212-503

Active

Laird Thermal Systems, Inc.

PELTIER CP085,127,06,L,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP085,127,06,L,RT,W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	71212-503

Current - Max [Max]	2.3 A
Delta Tmax @ Th	68 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.58 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	20 W
Resistance	5.76 Ohms
Size / Dimension [x]	29.72 mm
Size / Dimension [y]	29.72 mm
Voltage - Max [Max]	14.5 V

Part	Operating Temperature	Current - Max [Max]	Voltage - Max [Max]	Number of Stages	Resistance	Size / Dimension [x]	Size / Dimension [y]	Qmax @ Th	Delta Tmax @ Th	Features	Height [z]
Laird Thermal Systems, Inc. 71212-503	80 °C	2.3 A	14.5 V	1	5.76 Ohms	29.72 mm	29.72 mm	20 W	68 °C	Lead Wires Sealed - Silicone RTV	3.58 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 35.81

General part information

Peltier Module 20.0W @ 25°C 2.3 A 80°C
