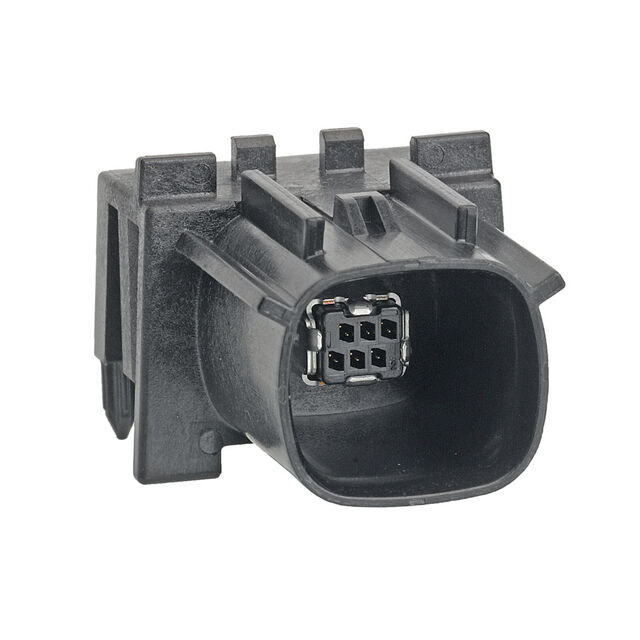

0348980503
ActiveMolex
CONN HDR 6POS 0.05 GOLD EDGE MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0348980503
ActiveMolex
CONN HDR 6POS 0.05 GOLD EDGE MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0348980503 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 16 Áin |
| Contact Finish Thickness - Mating | 0.41 Ám |
| Contact Finish Thickness - Post | 2.5 µm |
| Contact Finish Thickness - Post | 98.4 µin |
| Contact Material | Copper Alloy |
| Contact Type | Female Socket |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide, Sealed |
| Insulation Color | Black |
| Insulation Height | 11.5 mm |
| Insulation Height | 0.453 in |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.43 | |
| 10 | $ 5.75 | |||
| 25 | $ 5.25 | |||
| 40 | $ 5.03 | |||
| 80 | $ 4.73 | |||
| 230 | $ 4.34 | |||
| 440 | $ 4.14 | |||
| 945 | $ 3.93 | |||
| 2400 | $ 3.76 | |||
Description
General part information
034898 Series
6 Position Header Connector 0.050" (1.27mm) Board Edge, Through Hole, Right Angle Gold
