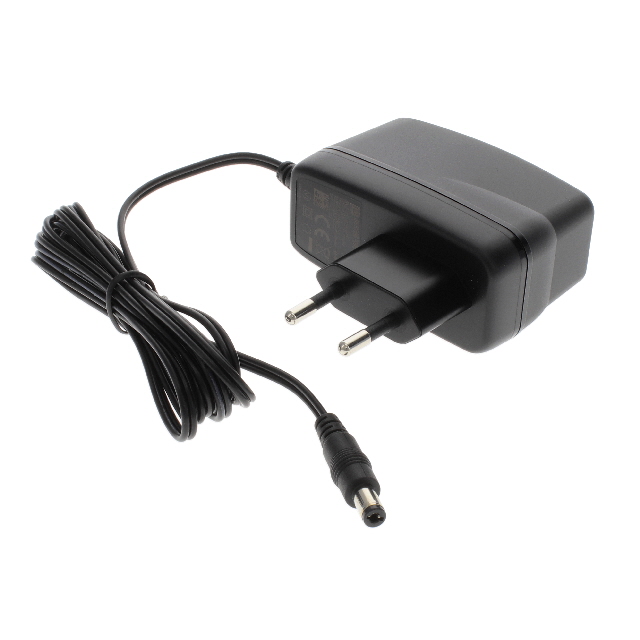

AA10E-050A-R

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	AA10E-050A-R

Applications	ITE (Commercial)
Approval Agency	IEC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	10 W
Region Utilized	Europe
Size / Dimension [x]	71.2 mm
Size / Dimension [x]	2.8 in
Size / Dimension [y]	1.34 in
Size / Dimension [y]	34 mm
Size / Dimension [z]	2.55 in
Size / Dimension [z]	64.7 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Efficiency	Input Type	Input Connector	Voltage - Output	Output Connector [diameter]	Output Connector [x]	Output Connector	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Approval Agency	Form	Standard Number	Applications	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	No Load Power Consumption [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Cord Length	Cord Length	Power (Watts)
Phihong USA AA10E-050A-R	Level VI	Fixed Blade	CEE 7/16	5 V	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	90 VAC	264 VAC	Europe	IEC	Wall Mount (Class II)	60950-1	ITE (Commercial)	2 A	1.34 in	34 mm	2.55 in	71.2 mm	64.7 mm	2.8 in	75 mW	40 °C	0 °C	1.5 m	59 in	10 W
Phihong USA AA10E-050A(M)-R	Level VI	Fixed Blade	CEE 7/16	5 V			USB Micro		90 VAC	264 VAC	Europe	IEC	Wall Mount (Class II)	60950-1	ITE (Commercial)	2 A	1.34 in	34 mm	2.55 in	71.2 mm	64.7 mm	2.8 in	75 mW	40 °C	0 °C	1.5 m	59 in	10 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
