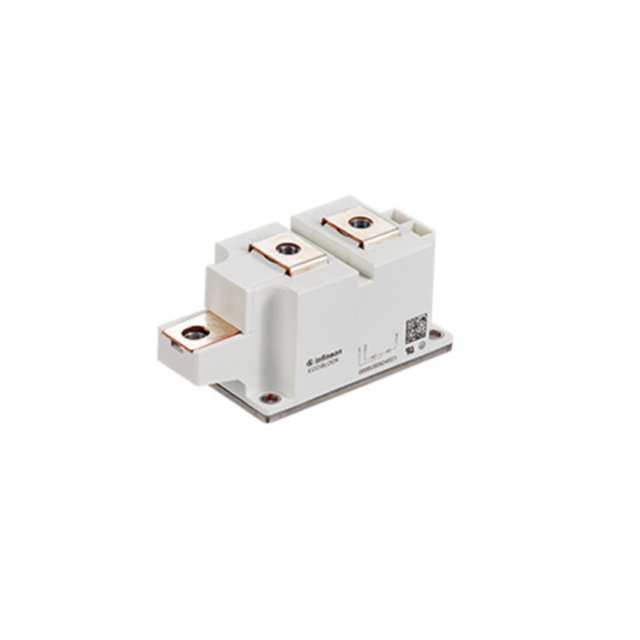

TT320N16SOFTIMHPSA1
ActiveTHYRISTOR/THYRISTOR 50 MM ECO BLOCK 1600 V 320 A MODULE FOR PHASE CONTROL IN SOLDER BOND TECHNOLOGY WITH TIM
Deep-Dive with AI
Search across all available documentation for this part.
TT320N16SOFTIMHPSA1
ActiveTHYRISTOR/THYRISTOR 50 MM ECO BLOCK 1600 V 320 A MODULE FOR PHASE CONTROL IN SOLDER BOND TECHNOLOGY WITH TIM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TT320N16SOFTIMHPSA1 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 150 mA |
| Current - Hold (Ih) (Max) [Max] | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9500 A |
| Current - On State (It (AV)) (Max) [Max] | 320 A |
| Current - On State (It (RMS)) (Max) | 520 A |
| Mounting Type | Chassis Mount |
| Number of SCRs, Diodes | 2 SCRs |
| Operating Temperature | 130 °C |
| Package / Case | Module |
| Structure | Series Connection - All SCRs |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 2 V |
| Voltage - Off State | 1.6 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 3 | $ 105.23 | |
| 12 | $ 96.07 | |||
| 27 | $ 91.65 | |||
| 81 | $ 86.90 | |||
Description
General part information
TT320N16 Series
Thyristor/Thyristor 50 mm Eco Block 1600 V, 320 A module for phase control insolder bond technologywith pre-appliedThermal Interface Materialto achieve a reproductible thermal performance of power electronic systems. Please also find our Power Block Thyristor module for phase control with high reliablepressure contact technology:TT330N16KOF TIM
