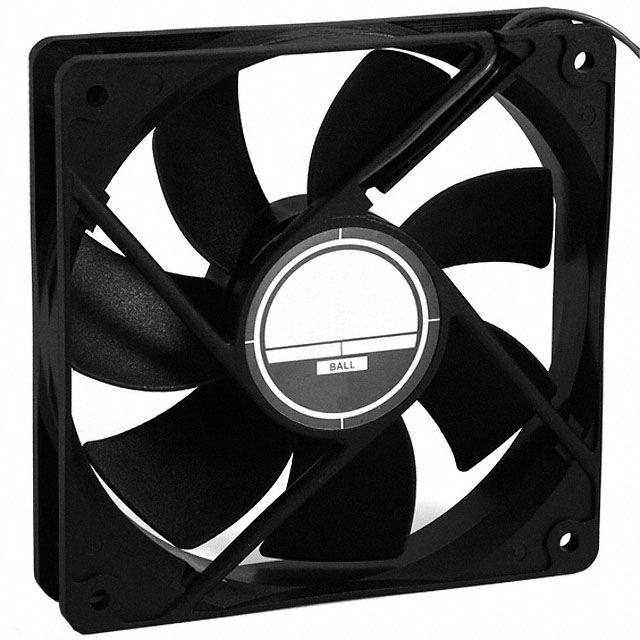

OD1225-12MB10A

Active

Orion Fans

FAN AXIAL 120X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD1225-12MB10A

Active

Orion Fans

FAN AXIAL 120X25MM 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD1225-12MB10A

Air Flow	2.52 mł/min
Air Flow	90 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Current Rating (Amps)	0.35 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	35 dB
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	4 W
RPM	2500 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	47.3 Pa
Static Pressure	0.19 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	8 VDC
Weight	154.67 g
Weight	0.341 lb
Width [y]	25 mm

OD1225 Series

...

Part	Width [y]	Material - Blade	Termination	Current Rating (Amps)	Fan Type	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Noise	Features	Air Flow	Air Flow	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Weight	Weight	Lifetime @ Temp.	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Static Pressure	Static Pressure	Ingress Protection
Orion Fans OD1225-12LB5	25 mm	Polybutylene Terephthalate (PBT)	3 Wire Leads	0.2 A	Tubeaxial	12 VDC	8 VDC	13.8 VDC	Ball	25 dB(A)	Auto Restart PWM Control	70 CFM	1.96 m³/min	1900 RPM	-20 °C	-20 C	65 °C	65 °C	154.67 g	0.341 lb	60000 Hrs	CE cURus TUV UR	120 mm	120 mm
Orion Fans OD1225-12LS02A	25 mm	Polybutylene Terephthalate (PBT)	3 Wire Leads	0.2 A	Tubeaxial	12 VDC			Sleeve	25 dB(A)	Auto Restart Locked Rotor Sensor	70 CFM	1.96 m³/min	1900 RPM	-10 °C	-10 °C	70 °C	70 °C	154.67 g	0.341 lb		cURus TUV	120 mm	120 mm
Orion Fans OD1225-12MS	25 mm	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.35 A	Tubeaxial	12 VDC			Sleeve	35 dB	Auto Restart	90 CFM	2.52 mł/min	2500 RPM	-10 °C	-10 °C	70 °C	70 °C	154.67 g	0.341 lb		cURus TUV	120 mm	120 mm	4 W	47.3 Pa	0.19 in H2O
Orion Fans OD1225-12LB	25 mm	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.2 A	Tubeaxial	12 VDC	8 VDC	13.8 VDC	Ball	25 dB(A)	Auto Restart	70 CFM	1.96 m³/min	1900 RPM	-20 °C	-20 C	65 °C	65 °C	154.67 g	0.341 lb	60000 Hrs	CE cURus TUV UR	120 mm	120 mm
Orion Fans OD1225-12HBIP5501A	25 mm	Polybutylene Terephthalate (PBT)	3 Wire Leads	450 mA	Tubeaxial	12 VDC	8 VDC	13.8 VDC	Ball	42 dB	Auto Restart Speed Sensor (Tach)	120 CFM	3.36 m³/min	3100 RPM	-20 °C	-20 C	65 °C	65 °C	154.67 g	0.341 lb	60000 Hrs	CE cURus TUV UR	120 mm	120 mm	5.4 W	59.8 Pa	0.24 in H2O	IP55 - Dust Protected Water Resistant
Orion Fans OD1225-24LSS02A	25 mm	Polybutylene Terephthalate (PBT)	3 Wire Leads	100 mA	Tubeaxial	24 VDC			Sealed Sleeve	25 dB(A)	Auto Restart Locked Rotor Sensor	70 CFM	1.96 m³/min	1900 RPM	-10 °C	-10 °C	70 °C	70 °C	154.67 g	0.341 lb		cURus TUV	120 mm	120 mm	2.4 W
Orion Fans OD1225-12HBIP55	25 mm	Polybutylene Terephthalate (PBT)	2 Wire Leads	450 mA	Tubeaxial	12 VDC	8 VDC	13.8 VDC	Ball	42 dB	Auto Restart	120 CFM	3.36 m³/min	3100 RPM	-20 °C	-20 C	65 °C	65 °C	154.67 g	0.341 lb	60000 Hrs	CE cURus TUV UR	120 mm	120 mm	5.4 W	59.8 Pa	0.24 in H2O	IP55 - Dust Protected Water Resistant
Orion Fans OD1225-24LSS	25 mm	Polybutylene Terephthalate (PBT)	2 Wire Leads	100 mA	Tubeaxial	24 VDC			Sealed Sleeve	25 dB(A)	Auto Restart	70 CFM	1.96 m³/min	1900 RPM	-10 °C	-10 °C	70 °C	70 °C	154.67 g	0.341 lb		cURus TUV	120 mm	120 mm	2.4 W
Orion Fans OD1225-12LSS02A	25 mm	Polybutylene Terephthalate (PBT)	3 Wire Leads	0.2 A	Tubeaxial	12 VDC			Sealed Sleeve	25 dB(A)	Auto Restart Locked Rotor Sensor	70 CFM	1.96 m³/min	1900 RPM	-10 °C	-10 °C	70 °C	70 °C	154.67 g	0.341 lb		cURus TUV	120 mm	120 mm
Orion Fans OD1225-12MB10A	25 mm	Polybutylene Terephthalate (PBT)	4 Wire Leads	0.35 A	Tubeaxial	12 VDC	8 VDC	13.8 VDC	Ball	35 dB	Auto Restart PWM Control Speed Sensor (Tach)	90 CFM	2.52 mł/min	2500 RPM	-20 °C	-20 C	65 °C	65 °C	154.67 g	0.341 lb	60000 Hrs	CE cURus TUV UR	120 mm	120 mm	4 W	47.3 Pa	0.19 in H2O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 14.22

Description

General part information

OD1225 Series

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 90.0 CFM (2.52m³/min) 4 Wire Leads
