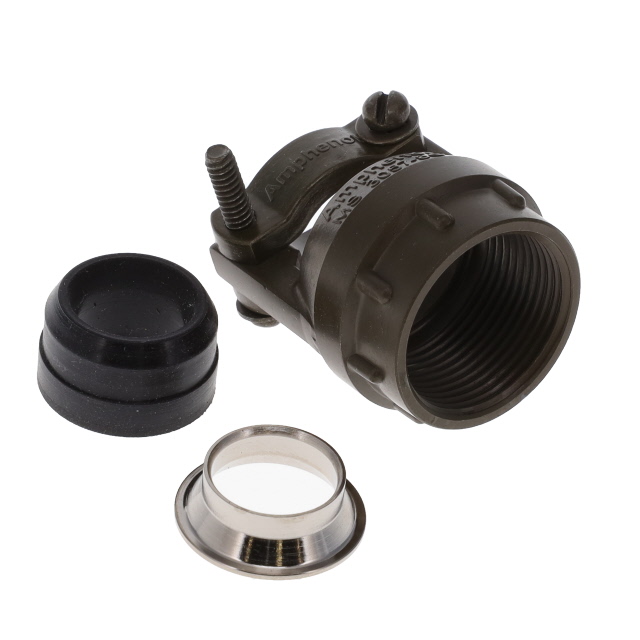

MS3057-8C
ActiveAmphenol Interconnect India
CONN CAB CLAMP SZ16 OLIV 7/8-20
Deep-Dive with AI
Search across all available documentation for this part.
MS3057-8C
ActiveAmphenol Interconnect India
CONN CAB CLAMP SZ16 OLIV 7/8-20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3057-8C |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [custom] | 0.515 in |
| Cable Opening [Max] [custom] | 13.08 mm |
| Cable Opening [Min] [custom] | 0.316 in |
| Cable Opening [Min] [custom] | 8.03 mm |
| Color | Olive Drab |
| Features | Clamp Screws |
| For Use With/Related Products | MIL-C-22992 Connectors |
| Plating | Cadmium |
| Primary Material | Metal |
| Shell Size - Insert | 16 |
| Shielding | Unshielded |
| Thread Size | 7/8-20 UNEF |
| Type | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.56 | |
| 1 | $ 265.22 | |||
| 10 | $ 17.13 | |||
| 25 | $ 16.39 | |||
| 50 | $ 15.86 | |||
| 100 | $ 15.33 | |||
| 250 | $ 14.49 | |||
| 500 | $ 14.06 | |||
Description
General part information
MS3057-8 Series
Olive Drab Connector Cable Clamp 7/8-20 UNEF 16
Documents
Technical documentation and resources
No documents available
