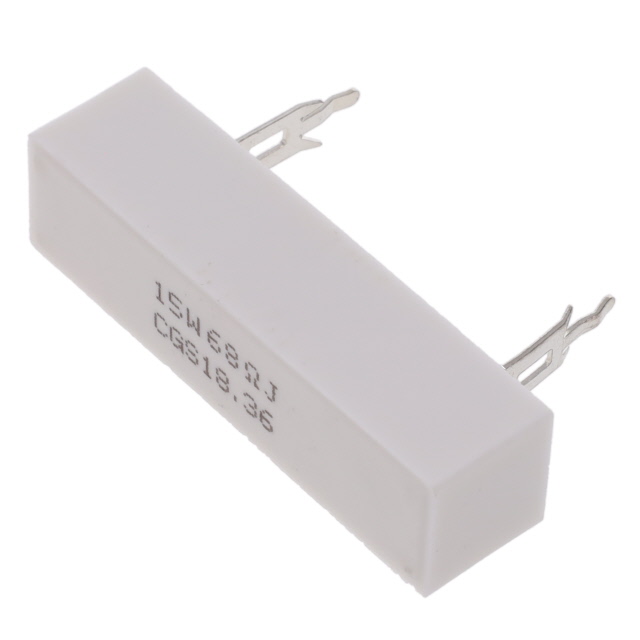

SQZW1568RJ
ActiveTE Connectivity Passive Product
RES 68 OHM 5% 15W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
SQZW1568RJ
ActiveTE Connectivity Passive Product
RES 68 OHM 5% 15W RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQZW1568RJ |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 13 mm |
| Height - Seated (Max) [Max] [z] | 0.512 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 15 W |
| Resistance | 68 Ohms |
| Size / Dimension [x] | 48 mm |
| Size / Dimension [x] | 1.89 in |
| Size / Dimension [y] | 0.492 in |
| Size / Dimension [y] | 12.5 mm |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 0.92 | |||
| 25 | $ 0.89 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.67 | |||
| 300 | $ 0.59 | |||
| 500 | $ 0.55 | |||
Description
General part information
SQZW15 Series
68 Ohms ±5% 15W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Wirewound
Documents
Technical documentation and resources
No documents available
