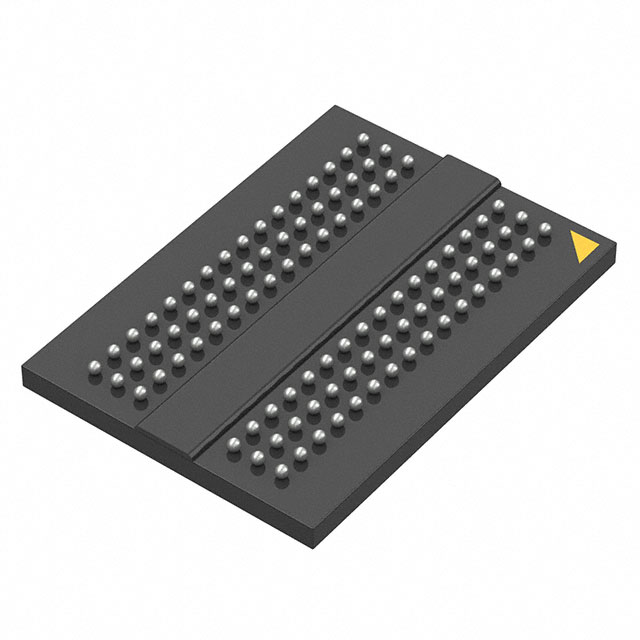

IS43TR16512S2DL-125KBL-TR

Active

ISSI, Integrated Silicon Solution Inc

DRAM CHIP DDR3L SDRAM 8GBIT 512MX16 1.35V 96-PIN LWBGA T/R

Deep-Dive with AI

Search across all available documentation for this part.

IS43TR16512S2DL-125KBL-TR

Active

ISSI, Integrated Silicon Solution Inc

DRAM CHIP DDR3L SDRAM 8GBIT 512MX16 1.35V 96-PIN LWBGA T/R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IS43TR16512S2DL-125KBL-TR

Access Time	20 ns
Clock Frequency	800 MHz
Grade	Automotive
Memory Format	DRAM
Memory Interface	Parallel
Memory Organization	512 M
Memory Size	1024 KB
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	95 °C
Operating Temperature [Min]	0 °C
Package / Case	96-LFBGA
Qualification	AEC-Q100
Supplier Device Package	96-LWBGA (9x13)
Technology	SDRAM - DDR3L
Voltage - Supply [Max]	1.45 V
Voltage - Supply [Min]	1.283 V
Write Cycle Time - Word, Page	15 ns

IS43TR16512 Series

Part	Mounting Type	Supplier Device Package	Memory Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Memory Organization	Memory Size	Memory Format	Technology	Clock Frequency	Access Time	Write Cycle Time - Word, Page	Qualification	Grade
ISSI, Integrated Silicon Solution Inc IS43TR16512B-125KBLI	Surface Mount	96-TWBGA (10x14)	Volatile	96-TFBGA	1.575 V	1.425 V	95 °C	-40 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3	800 MHz	20 ns
ISSI, Integrated Silicon Solution Inc IS43TR16512AL-125KBL-TR	Surface Mount	96-LFBGA (10x14)	Volatile	96-LFBGA	1.45 V	1.283 V	95 °C	0 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3L	800 MHz	20 ns	15 ns
ISSI, Integrated Silicon Solution Inc IS43TR16512AL-15HBL	Surface Mount	96-LFBGA (10x14)	Volatile	96-LFBGA	1.45 V	1.283 V	95 °C	0 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3L	667 MHz	20 ns	15 ns
ISSI, Integrated Silicon Solution Inc IS43TR16512AL-15HBL-TR	Surface Mount	96-LFBGA (10x14)	Volatile	96-LFBGA	1.45 V	1.283 V	95 °C	0 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3L	667 MHz	20 ns	15 ns
ISSI, Integrated Silicon Solution Inc IS43TR16512S2DL-125KBL-TR	Surface Mount	96-LWBGA (9x13)	Volatile	96-LFBGA	1.45 V	1.283 V	95 °C	0 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3L	800 MHz	20 ns	15 ns	AEC-Q100	Automotive
ISSI, Integrated Silicon Solution Inc IS43TR16512AL-15HBLI	Surface Mount	96-LFBGA (10x14)	Volatile	96-LFBGA	1.45 V	1.283 V	95 °C	-40 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3L	667 MHz	20 ns	15 ns
ISSI, Integrated Silicon Solution Inc IS43TR16512A-15HBL-TR	Surface Mount	96-LFBGA (10x14)	Volatile	96-LFBGA	1.575 V	1.425 V	95 °C	0 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3	667 MHz	20 ns	15 ns
ISSI, Integrated Silicon Solution Inc IS43TR16512BL-125KBL	Surface Mount	96-TWBGA (10x14)	Volatile	96-TFBGA	1.45 V	1.283 V	95 °C	0 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3L	800 MHz	20 ns
ISSI, Integrated Silicon Solution Inc IS43TR16512A-125KBL	Surface Mount	96-LFBGA (10x14)	Volatile	96-LFBGA	1.575 V	1.425 V	95 °C	0 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3	800 MHz	20 ns	15 ns
ISSI, Integrated Silicon Solution Inc IS43TR16512AL-125KBLI-TR	Surface Mount	96-LFBGA (10x14)	Volatile	96-LFBGA	1.45 V	1.283 V	95 °C	-40 °C	Parallel	512 M	1024 KB	DRAM	SDRAM - DDR3L	800 MHz	20 ns	15 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 18.12

Description

General part information

IS43TR16512 Series

SDRAM - DDR3L Memory IC 8Gbit Parallel 800 MHz 20 ns 96-LWBGA (9x13)

Documents

Technical documentation and resources

No documents available
